Expansion Joints JHR 6.30
All metal floor joints

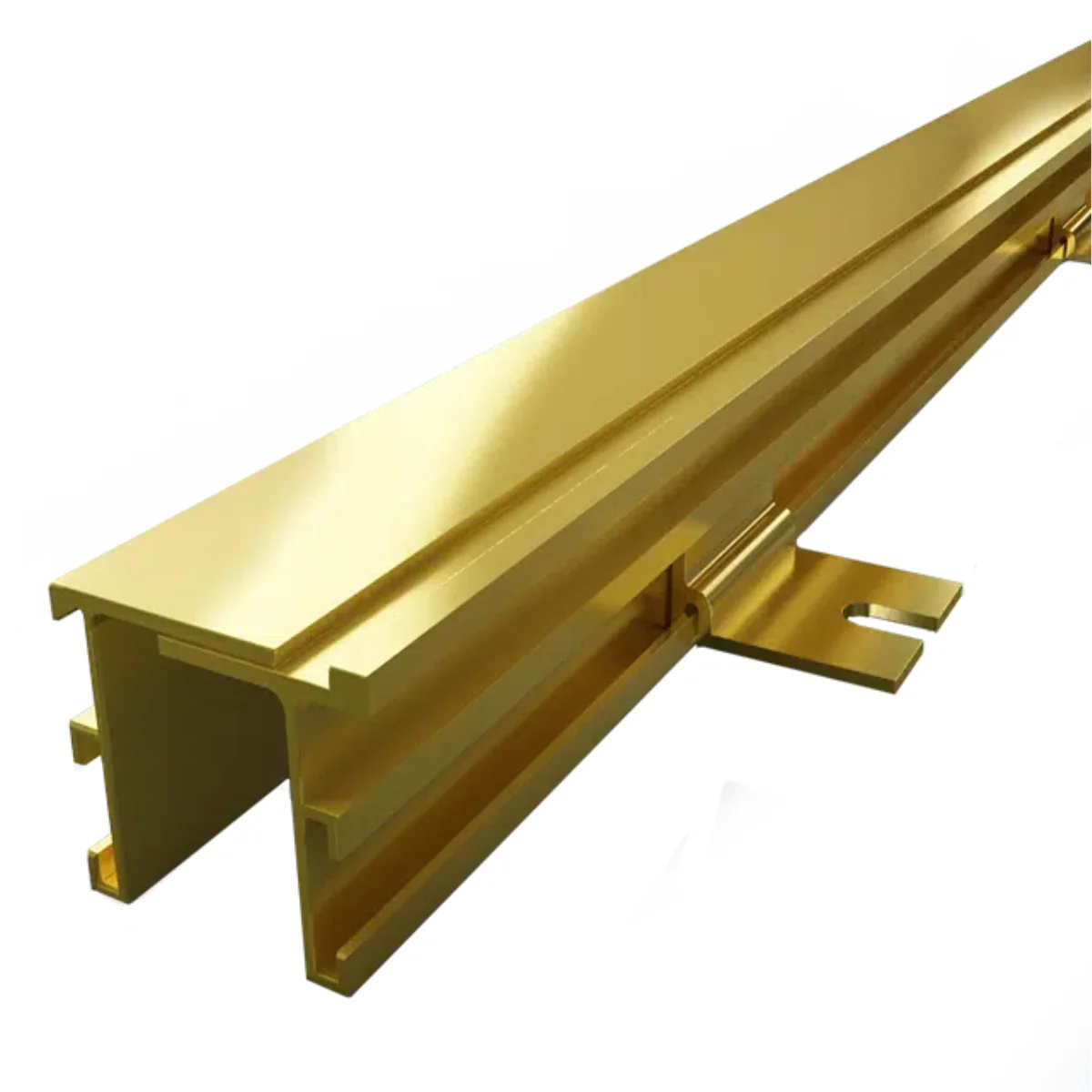

Floor Expansion Joint Special Brass Luxury Finish
MATERIAL: Brass
COLOUR: Natural
MODEL: Main course only
CHARACTERISTICS:
- All-brass expansion joint, luxury finish
- Ideal for all types of coverings: slabs, screeds, tiles, marble, etc.
- For opening joints up to 30 mm
All-brass floor expansion joint for interiors consisting of two lateral angles fitted on fixing brackets and a central brass part allowing expansion and contraction movements. Can be used for any type of finish: concrete, screed, tile, marble, etc.
Description
Shipping & Delivery
Related products
Expansion Joints JHR 5.04
Floor joints with insert
Floor Expansion Joint with Insert
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Reinforced Floor Expansion Joint
- Smooth Insert Option
- For opening joints from 30 to 60 mm
Reinforced floor expansion joint for exterior and interior made of pre-drilled aluminium angles and an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, etc.
Expansion Joints JDH 5.02
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Standard Floor Expansion Joint
- Smooth Insert Option
- For opening joints up to 60 mm
Standard floor expansion joint for exterior and interior made of pre-drilled aluminum angles and an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, etc. Suitable for light traffic, it will also be suitable for the passage of light trolleys with tyres and non-intensive traffic of light vehicles.
Expansion Joints JDV 4.10
Special Vertical Expansion Joint Large Seismic Movements
Seismic Vertical Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special expansion joint for large seismic movements
- Vertical installation: façade, wall and ceiling
- For opening joints from 50 to 200 mm
All-metal vertical expansion joint for train stations, airports, shopping malls...
These models consist of springs that allow large seismic movements.
Expansion Joints JDV 4.08
Special Vertical Expansion Joint External Insulation
Vertical expansion joint
MATERIAL: PVC
Nitrile
COLOUR: White
MODEL: Flat and Angle
CHARACTERISTICS:
- Vertical expansion joint
- Special insulation from the outside
- For 30 mm opening joints
Specially designed for the treatment of expansion joints in buildings made with external insulation.
It consists of:
- a fibre mesh for perfect adhesion to the plaster and easy positioning,
- a nitrile membrane to ensure the tightness of the system,
- a cladding of UV-resistant PVC closing profiles.
Expansion Joints JDV 4.07
Special Vertical Expansion Joint for Large Multidirectional Movements
Seismic Vertical Expansion Joint
MATERIAL: Aluminium
EPDM
COLOUR: Black
Grey
MODEL: Main course only
CHARACTERISTICS:
- Seismic expansion joint
- Vertical installation of façade, wall and ceiling
- For opening joints up to 600 mm
Vertical expansion joint for facades, walls and ceilings for opening joints up to 600 mm.
Allows you to absorb large multidirectional movements.
Expansion Joints JDV 4.02
Vertical expansion joint for facades, walls and ceilings
Seismic expansion joint for vertical application
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- For opening joints from 40 to 200 mm
- Seismic expansion joint
- Vertical installation of façade, wall and ceiling
Seismic vertical expansion joint in anodized aluminum composed of pre-drilled angles and a central part that allows ample movements to be absorbed.
It is ideally suited for application on walls, facades and ceilings. Available in 3 ml length.
Expansion Joints GASKET COVER CJV
Fastening joint cover
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat
ORIENTATION: vertical
CHARACTERISTICS:
- For openings up to 120 mm
- Made of raw aluminium
- Aesthetic and economical joint cover
This drilled and bent profile is the most economical solution for closing expansion joints. Available from stock, this raw aluminum joint cover can be delivered quickly to your construction site.
Expansion Joints GASKET COVER CJ Inox
Stainless steel joint covers
MATERIAL: Stainless steel
COLOUR: polished glossy | raw | grain leather | brush grit 220
MODEL: Flat
CHARACTERISTICS:
- Aesthetic, decorative and economical
- Easy and quick to install, without drilling or gluing
- For opening joints from 10 to 50 mm
Stainless steel clip-on joint covers are designed to protect and aesthetically clad the joints of facades, walls and ceilings. Easy and quick to install, they do not require drilling or gluing.
