Expansion Joints JHR 6.32
All metal floor joints

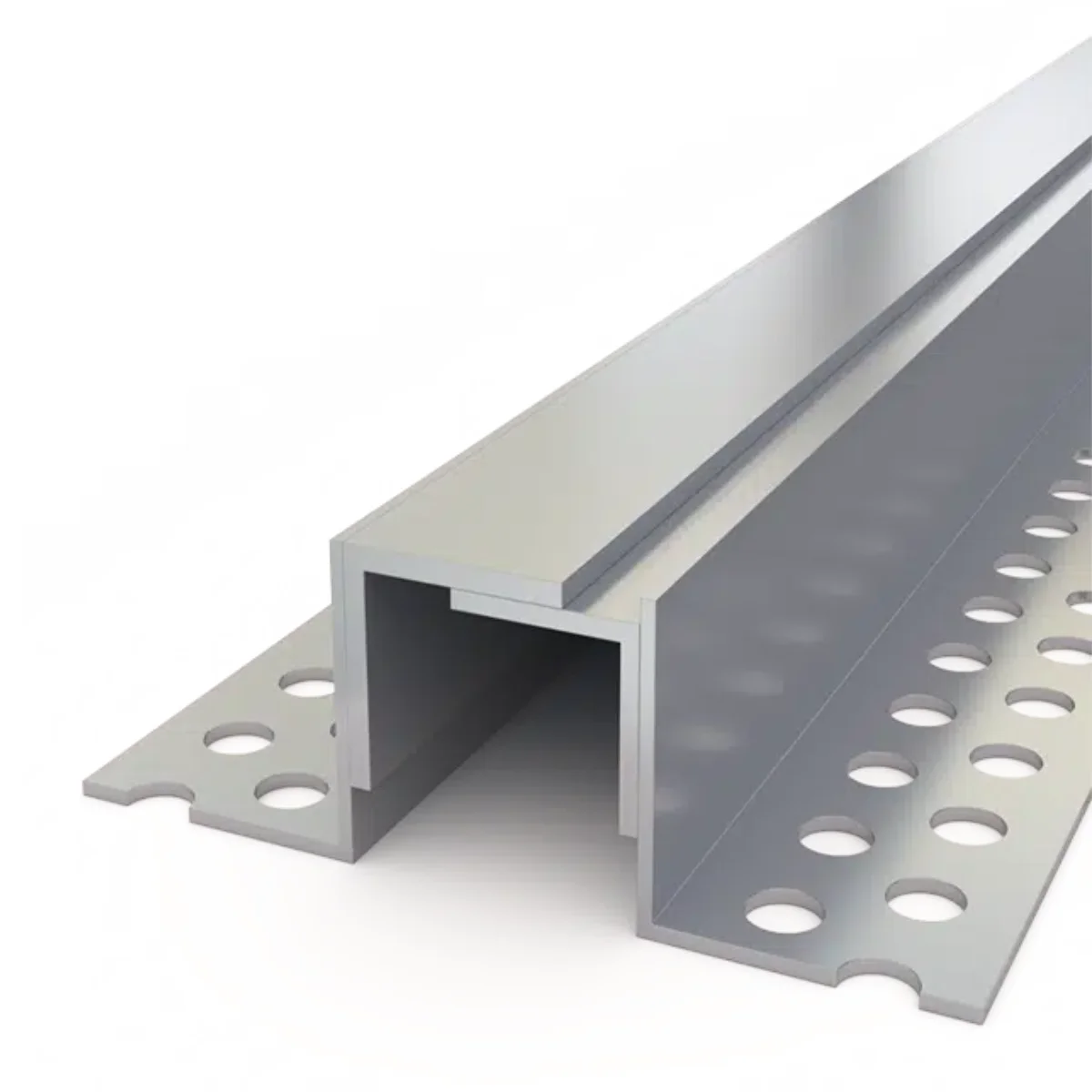

All-Stainless Steel Floor Expansion Joint
MATERIAL: Stainless steel
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Special harsh environments: chemical, industrial, food, etc.
- Coverings: concrete, screed, tiles, etc.
- For opening joints between 20 and 60 mm

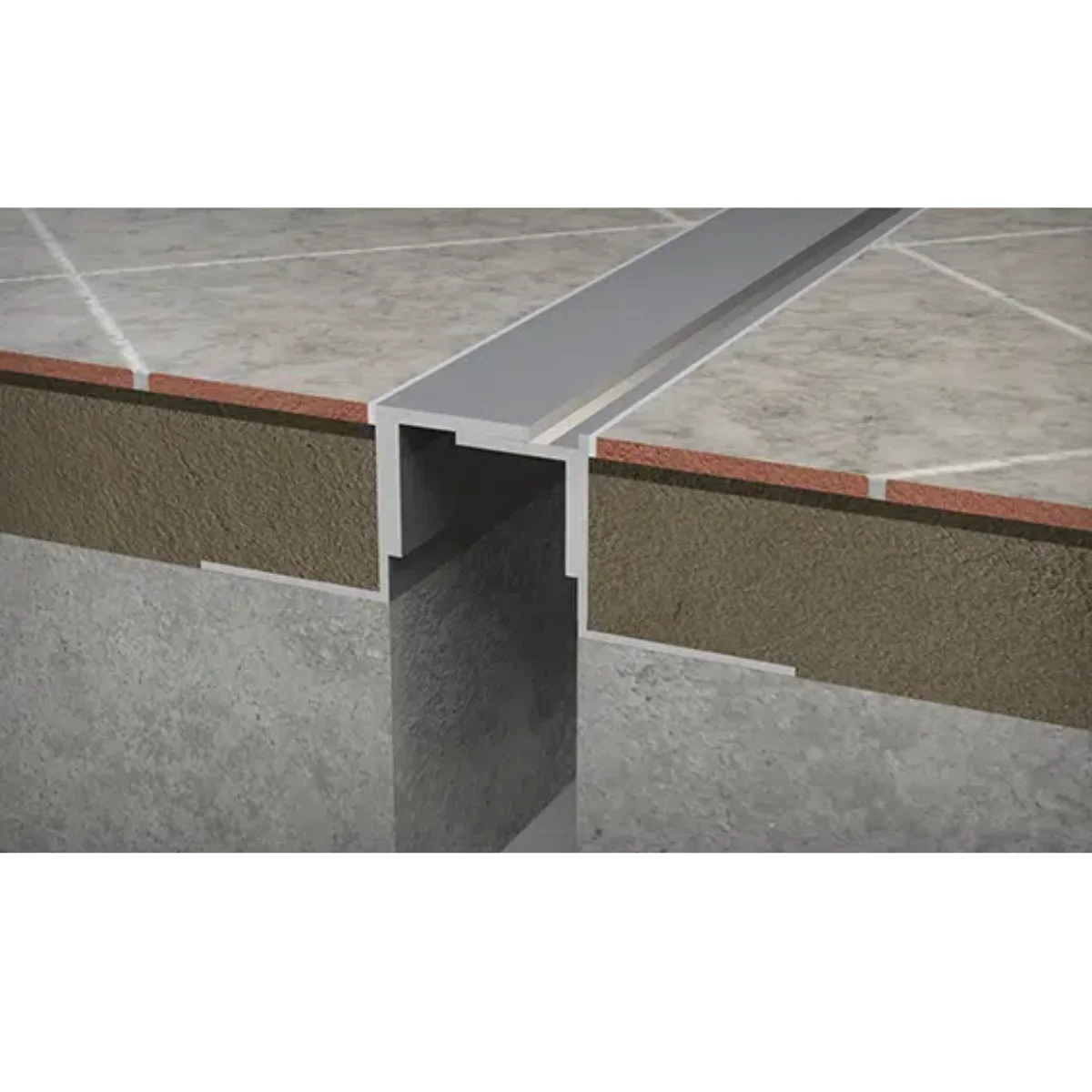

All-stainless steel floor expansion joint for exterior and interior consisting of two lateral angles mechanically fixed on support brackets and two central stainless steel parts allowing expansion and contraction movements. Can be used for any type of finish: concrete, screed, tile, marble,
