Expansion Joints JHR 6.29
Expansion Joints JHR 6.29
Back to products
Expansion Joints JHR 6.32
Expansion Joints JHR 6.32

Expansion Joints JHR 6.30

All metal floor joints

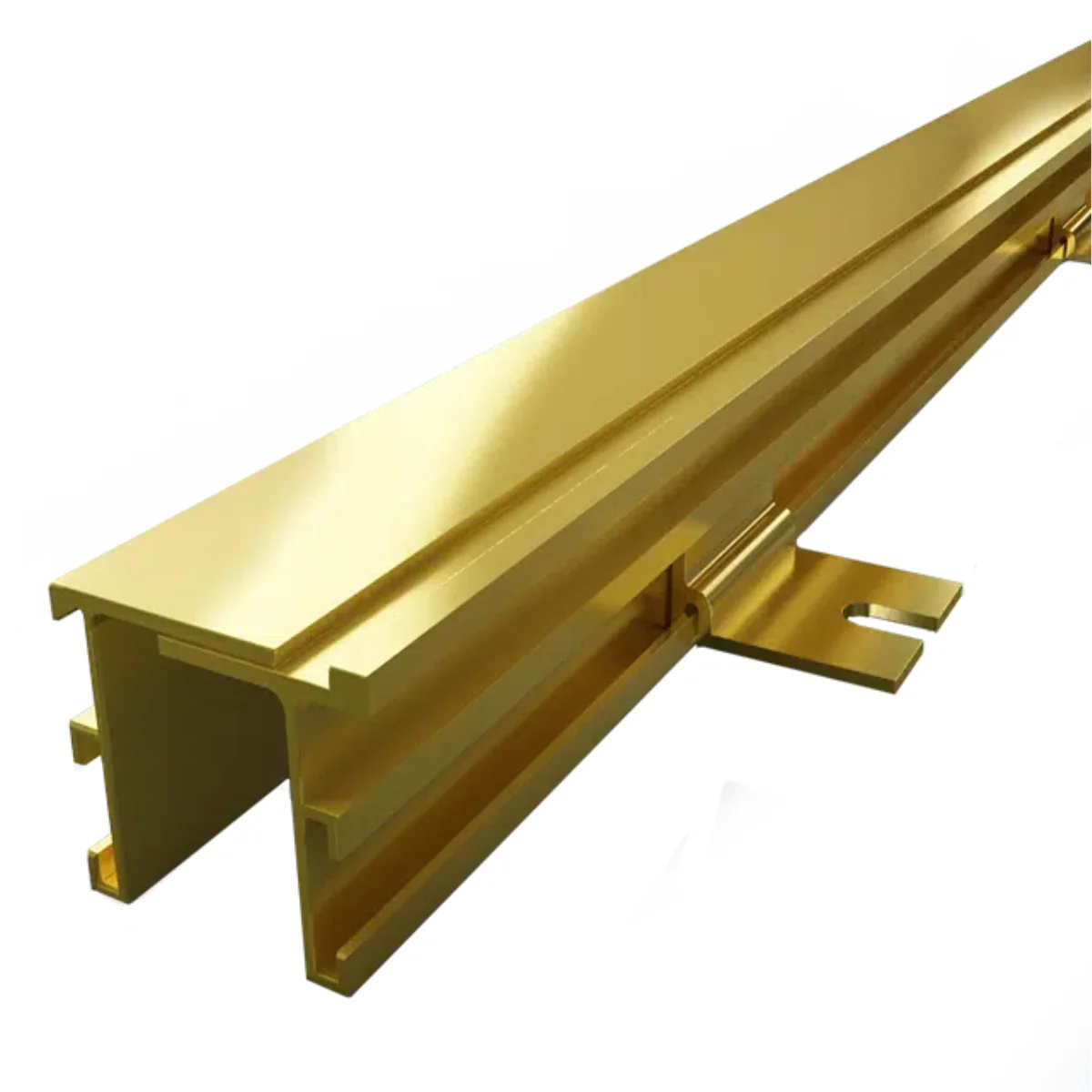

Floor Expansion Joint Special Brass Luxury Finish

MATERIAL: Brass

COLOUR: Natural

MODEL: Main course only

CHARACTERISTICS:

  • All-brass expansion joint, luxury finish
  • Ideal for all types of coverings: slabs, screeds, tiles, marble, etc.
  • For opening joints up to 30 mm
All-brass floor expansion joint for interiors consisting of two lateral angles fitted on fixing brackets and a central brass part allowing expansion and contraction movements. Can be used for any type of finish: concrete, screed, tile, marble, etc.



Category:
Description

Shipping & Delivery

Related products

Expansion Joints JHR 5.18

Floor joints with insert

Special Wide-Width Floor Expansion Joint

MATERIAL: Aluminium Nitrile
COLOUR: Black Grey RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
  • Special wide-width floor expansion joint
  • Smooth Insert Option
  • For opening joints from 100 to 500 mm
Extra-wide floor expansion joint consisting of 2 identical profiles, usually from the JDH 5.02 or JDH 5.04 series (see Technical Sheets), connected to each other by an aluminium supporting structure. The black or grey soft inserts are available in different widths (50 and 65 mm) to absorb more or less significant three-dimensional expansion movements.
Add to cart
Quick view

Expansion Joints JHR 5.10

Floor joints with insert

Brass Floor Expansion Joint

MATERIAL: Brass Nitrile
COLOUR: Black Grey RAL shades
MODEL: Main course only
CHARACTERISTICS:
  • Expansion joint with flexible insert
  • Brass gasket for a luxury finish
Brass floor expansion joint composed of an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, marble, etc. For indoor or outdoor floor joints up to 30 mm. Suitable for pedestrian and non-intensive light vehicle traffic.
Add to cart
Quick view

Expansion Joints JHR 5.08

Floor joints with insert

Aluminum Floor Expansion Joint

MATERIAL: Aluminium Nitrile
COLOUR: Black Grey RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
  • Reinforced Floor Expansion Joint
  • Special for large widths
  • For opening joints up to 125 mm
Wide-width floor expansion joint for outdoor and indoor use made of aluminium angles and 2 interchangeable flexible nitrile inserts for any type of finish: expansion joint for slabs, screeds, tiles, etc.
Add to cart
Quick view

Expansion Joints JDV 4.07

Special Vertical Expansion Joint for Large Multidirectional Movements

Seismic Vertical Expansion Joint

MATERIAL: Aluminium EPDM
COLOUR: Black Grey
MODEL: Main course only
CHARACTERISTICS:
  • Seismic expansion joint
  • Vertical installation of façade, wall and ceiling
  • For opening joints up to 600 mm
Vertical expansion joint for facades, walls and ceilings for opening joints up to 600 mm. Allows you to absorb large multidirectional movements.
Add to cart
Quick view

Expansion Joints JDV 4.03

Aluminum Seismic Vertical Expansion Joint

All-metal expansion joint

MATERIAL: ALUMINIUM
COLOUR: NATURAL RAL COLOURS
MODEL: FLAT AND ANGLE
CHARACTERISTICS:
  • For opening joints from 50 to 100 mm
  • Seismic expansion joint
  • Vertical wall and ceiling installation
Anodized aluminum seismic expansion joint for facades, walls and ceilings. Composed of a support fixed on one side only and an aluminium covering profile, this seismic joint cover absorbs expansion, contraction and shear movements.
Add to cart
Quick view

Expansion Joints Flexible Blanking Profile PSR

Flexible sealing profiles

MATERIAL: Nitrile PVC
COLOUR: Black Grey RAL shades
MODEL: Main course only
CHARACTERISTICS:
  • Cost-effective product, quick installation
  • For non-circulatable horizontal and vertical joints
  • For opening joints between 10 and 90 mm
Recessed flexible blanking profiles are ideal for the quick and economical construction of vertical joints, exterior or interior, or ceiling joints. PSRs have a "cap" shaped upper part that provides coverage and hides any irregularities that the joint may have.
Add to cart
Quick view

Expansion Joints PSO

Flexible sealing profiles

MATERIAL: Nitrile
COLOUR: Black Grey RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
  • Cost-effective product, quick installation
  • For non-circulatable horizontal and vertical joints
  • For opening joints between 10 and 120 mm
Recessed flexible blanking profiles are ideal for the quick and economical construction of vertical joints, exterior or interior, or ceiling joints. The PSO flexible profiles are installed, which allows for a quality finish. They can also be glued.
Add to cart
Quick view

Expansion Joints GASKET COVER CJ Brass

Brass joint cover

MATERIAL: Brass COLOR: raw press MODEL: Dish only CHARACTERISTICS:
  • Aesthetic, decorative and economical.
  • Easy and quick to install, without drilling or gluing.
  • For opening joints from 10 to 60 mm.
The brass clip-on joint covers are aesthetic, decorative and economical, easy and quick to install, without drilling or gluing, for opening joints from 10 mm to 60 mm. The brass clip-on joint covers have different clip models adapted to the opening of the joint to be treated.
Add to cart
