Expansion Joints JHR 6.29
All metal floor joints

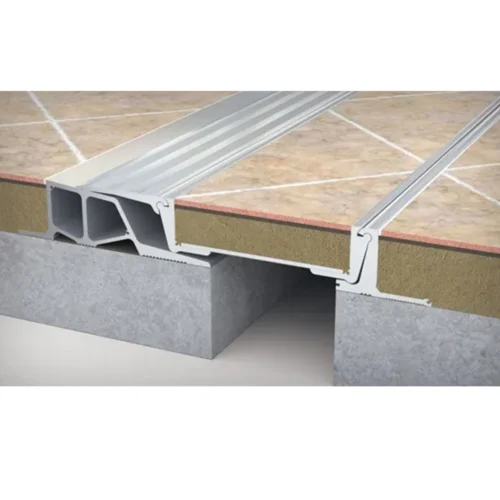

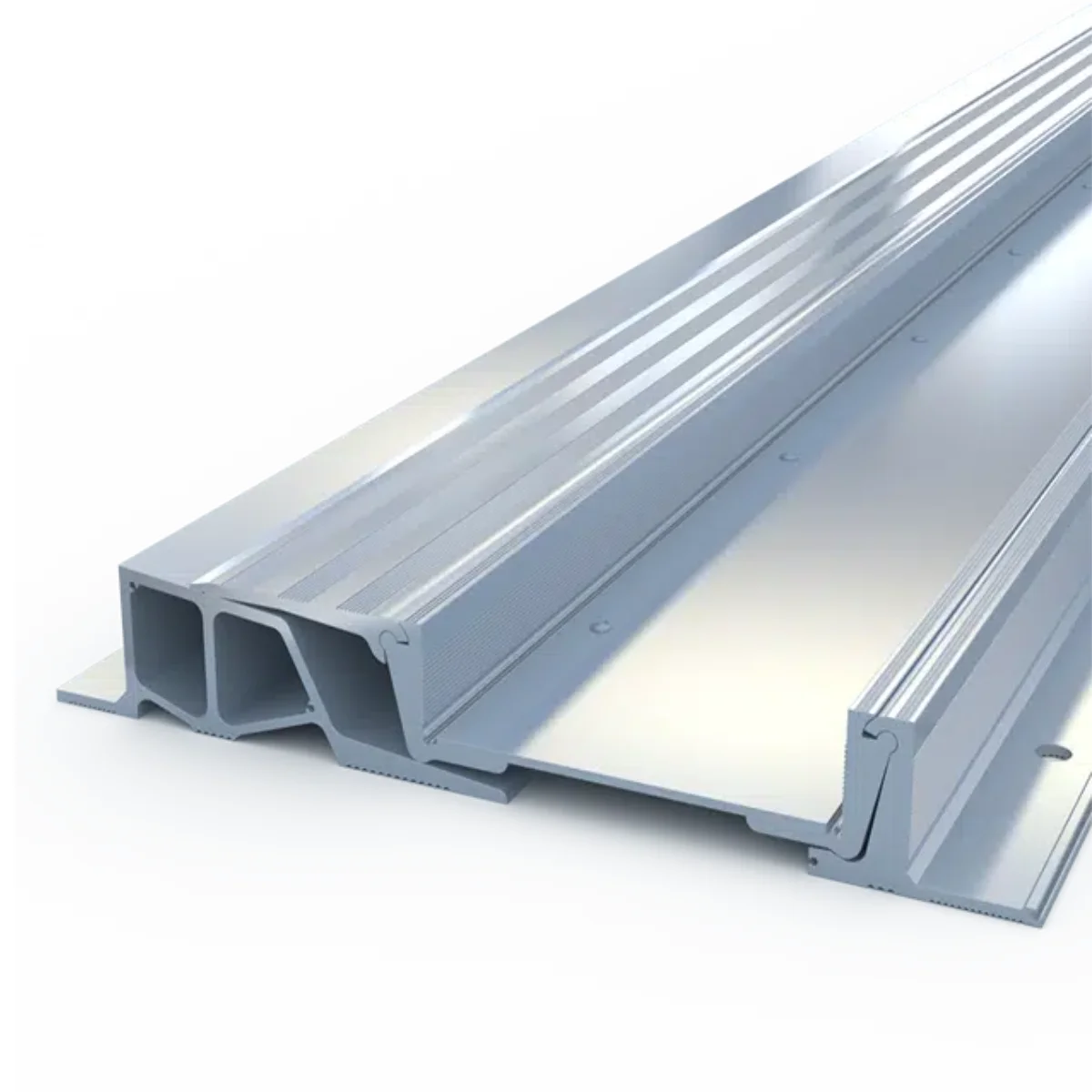

Large Width All Metal Special Floor Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Profile for large seismic movements
- Special for large widths and suitable for taking up large seismic movements
- For opening joints between 100 and 600 mm
Seismic aluminium floor expansion joint is a galvanised steel top for tiles or stone (maximum height of 20 mm). Profile for the treatment of wide joints and specially adapted to take up large seismic movements
Description
Shipping & Delivery
Related products
Expansion Joints JDH 5.06
Floor joints with insert
Special Wide-Width Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special wide-width floor expansion joint
- For opening joints from 100 to 200 mm
Floor expansion joint made of aluminium angles and a smooth interchangeable central flexible insert, black or grey (other colours on request) to absorb expansion movements. Can be used for any type of finish: expansion joint for concrete, screed, tiles, etc. For indoor or outdoor floor joints.
Expansion Joints JDH 5.02
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Standard Floor Expansion Joint
- Smooth Insert Option
- For opening joints up to 60 mm
Standard floor expansion joint for exterior and interior made of pre-drilled aluminum angles and an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, etc. Suitable for light traffic, it will also be suitable for the passage of light trolleys with tyres and non-intensive traffic of light vehicles.
Expansion Joints JDH 5.02 with Hoods
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
Brass or stainless steel
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Standard Floor Expansion Joint
- Smooth Insert Option
- For opening joints up to 60 mm
Floor expansion joint for exterior and interior made up of aluminium angles, an interchangeable flexible insert and metal covers in stainless steel, brass or aluminium, for all types of finishes: slab, screed, tile, etc. Suitable for light traffic, it will also be suitable for the passage of light trolleys with tyres and non-intensive traffic of light vehicles.
Expansion Joints JDV 4.16
Seismic Expansion Joint for Suspended Ceilings
Expansion joint for suspended ceilings
MATERIAL: aluminium
Vulcanized thermoplastic
MODEL: Flat
Angle
CHARACTERISTICS:
- For opening up to 250 mm
- For false ceilings
- Seismic expansion joint
Seismic expansion joint for suspended ceilings with 50% movement.
Composed of two aluminium angles and a flexible TPV insert. To ensure a better hold, a self-centering pivot is available from the 150 mm opening.
The hangers are not supplied with the ceiling expansion joint.
Expansion Joints JDV 4.10
Special Vertical Expansion Joint Large Seismic Movements
Seismic Vertical Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special expansion joint for large seismic movements
- Vertical installation: façade, wall and ceiling
- For opening joints from 50 to 200 mm
All-metal vertical expansion joint for train stations, airports, shopping malls...
These models consist of springs that allow large seismic movements.
Expansion Joints JDV 4.04
Galvanized Steel Exterior and Interior Wall Expansion Joint
Steel expansion profile with nitrile insert
MATERIAL: Galvanized steel
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- For 30 to 50 mm opening joints
- Laying under plaster
- Recessed vertical expansion joint
Vertical expansion joints in galvanized steel for facades, walls and ceilings composed of two pre-drilled recessed galvanized steel angles and an interchangeable flexible nitrile insert to absorb small multidirectional movements.
Expansion Joints GASKET COVER CJE-PF
Extruded, drilled and milled joint covers
MATERIAL: Aluminium
COLOUR: PAL Shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Economical joint cover, easy and quick installation
- For new work and renovation
- For opening joints up to 250 mm
CJE-PF joint covers are designed to protect and cover floor joints but can also be used on facades, walls and ceilings. Aesthetic, decorative and economical, they can be used indoors or outdoors. Pre-drilled and milled, they are easy to install, and are used in new work and renovation for joints from 10 to 250 mm of opening.
Expansion Joints GASKET COVER CJ PVC
PVC joint covers
MATERIAL: PVC
COLOUR: White
Beige
Grey
MODEL: Flat and Angle
CHARACTERISTICS:
- Aesthetic, decorative and economical
- Easy and quick to install, without drilling or gluing
- For opening joints from 10 to 120 mm
PVC clip-on joint covers are aesthetic, decorative and economical.
Easy and quick to install, without drilling or gluing, they have different models of clips(S, SLL, XL or XXL) suitable for all joint openings from 10 to 120 mm.
