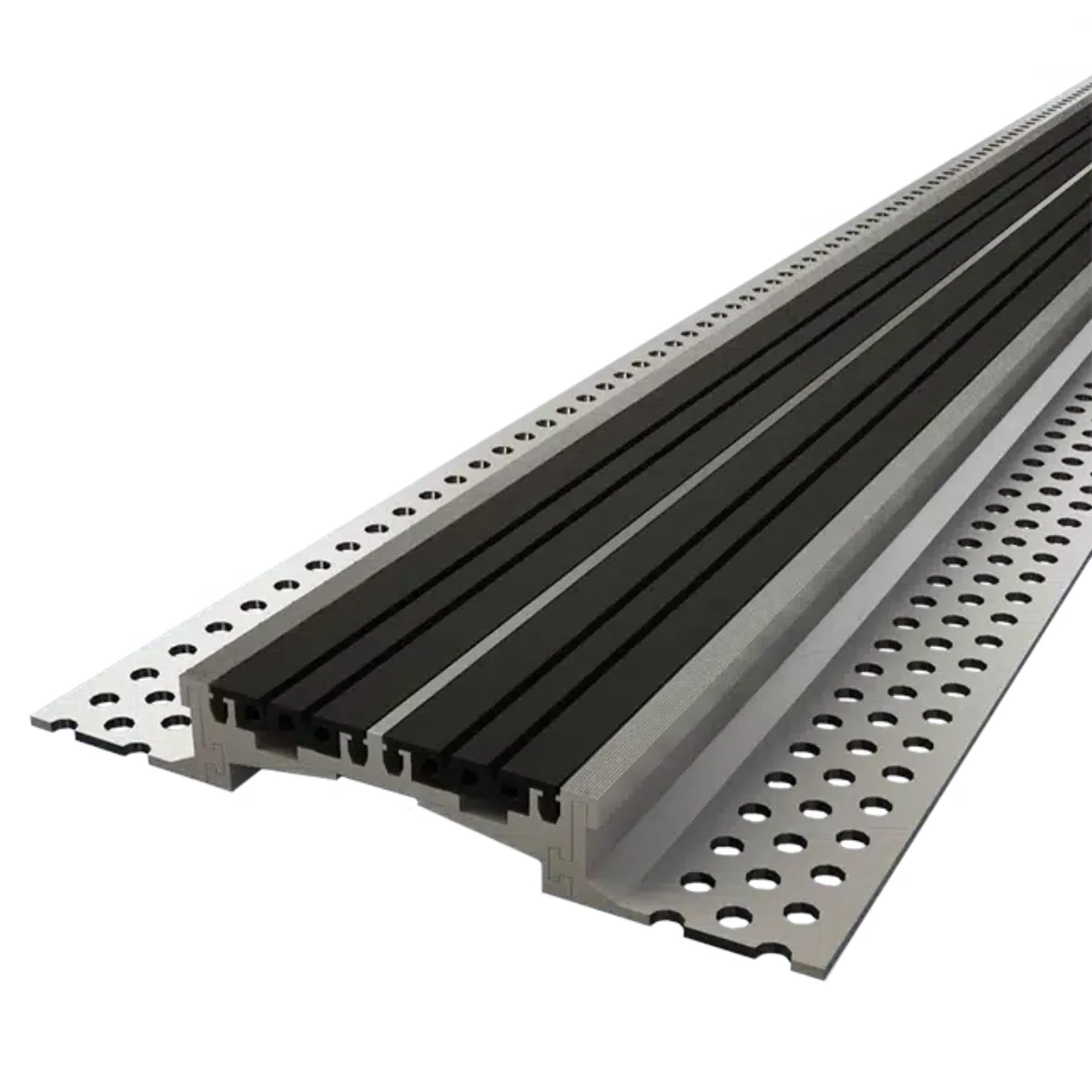

Expansion Joints JHR 5.08
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Reinforced Floor Expansion Joint
- Special for large widths
- For opening joints up to 125 mm
Wide-width floor expansion joint for outdoor and indoor use made of aluminium angles and 2 interchangeable flexible nitrile inserts for any type of finish: expansion joint for slabs, screeds, tiles, etc.
Description
Shipping & Delivery
Related products
Expansion Joints JHR 5.18
Floor joints with insert
Special Wide-Width Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special wide-width floor expansion joint
- Smooth Insert Option
- For opening joints from 100 to 500 mm
Extra-wide floor expansion joint consisting of 2 identical profiles, usually from the JDH 5.02 or JDH 5.04 series (see Technical Sheets), connected to each other by an aluminium supporting structure. The black or grey soft inserts are available in different widths (50 and 65 mm) to absorb more or less significant three-dimensional expansion movements.
Expansion Joints JHR 5.04
Floor joints with insert
Floor Expansion Joint with Insert
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Reinforced Floor Expansion Joint
- Smooth Insert Option
- For opening joints from 30 to 60 mm
Reinforced floor expansion joint for exterior and interior made of pre-drilled aluminium angles and an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, etc.
Expansion Joints JDH 5.02 with Hoods
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
Brass or stainless steel
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Standard Floor Expansion Joint
- Smooth Insert Option
- For opening joints up to 60 mm
Floor expansion joint for exterior and interior made up of aluminium angles, an interchangeable flexible insert and metal covers in stainless steel, brass or aluminium, for all types of finishes: slab, screed, tile, etc. Suitable for light traffic, it will also be suitable for the passage of light trolleys with tyres and non-intensive traffic of light vehicles.
Expansion Joints JDV 4.02
Vertical expansion joint for facades, walls and ceilings
Seismic expansion joint for vertical application
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- For opening joints from 40 to 200 mm
- Seismic expansion joint
- Vertical installation of façade, wall and ceiling
Seismic vertical expansion joint in anodized aluminum composed of pre-drilled angles and a central part that allows ample movements to be absorbed.
It is ideally suited for application on walls, facades and ceilings. Available in 3 ml length.
Expansion Joints PSO
Flexible sealing profiles
MATERIAL: Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Cost-effective product, quick installation
- For non-circulatable horizontal and vertical joints
- For opening joints between 10 and 120 mm
Recessed flexible blanking profiles are ideal for the quick and economical construction of vertical joints, exterior or interior, or ceiling joints.
The PSO flexible profiles are installed, which allows for a quality finish. They can also be glued.
Expansion Joints Flexible Blanking Profile CP
Flexible sealing profiles
MATERIAL: Vulcanized thermoplastic
COLOUR: Black
MODEL: Dish only
CHARACTERISTICS:
- Cost-effective product, quick installation
- Hydrocarbon and UV resistant profiles
- For opening joints between 25 and 100 mm
Flexible vulcanised thermoplastic shutter profiles designed to be recessed into the floor and fixed with a special adhesive. The internal dimples support up to 50% of multidirectional movement, while maintaining enough lift to absorb traffic. Hydrocarbon and UV resistant profiles, which must be installed at least 5 mm below the running surface.
Expansion Joints GASKET COVER CJV
Fastening joint cover
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat
ORIENTATION: vertical
CHARACTERISTICS:
- For openings up to 120 mm
- Made of raw aluminium
- Aesthetic and economical joint cover
This drilled and bent profile is the most economical solution for closing expansion joints. Available from stock, this raw aluminum joint cover can be delivered quickly to your construction site.
Expansion Joints GASKET COVER CJ Inox
Stainless steel joint covers
MATERIAL: Stainless steel
COLOUR: polished glossy | raw | grain leather | brush grit 220
MODEL: Flat
CHARACTERISTICS:
- Aesthetic, decorative and economical
- Easy and quick to install, without drilling or gluing
- For opening joints from 10 to 50 mm
Stainless steel clip-on joint covers are designed to protect and aesthetically clad the joints of facades, walls and ceilings. Easy and quick to install, they do not require drilling or gluing.
