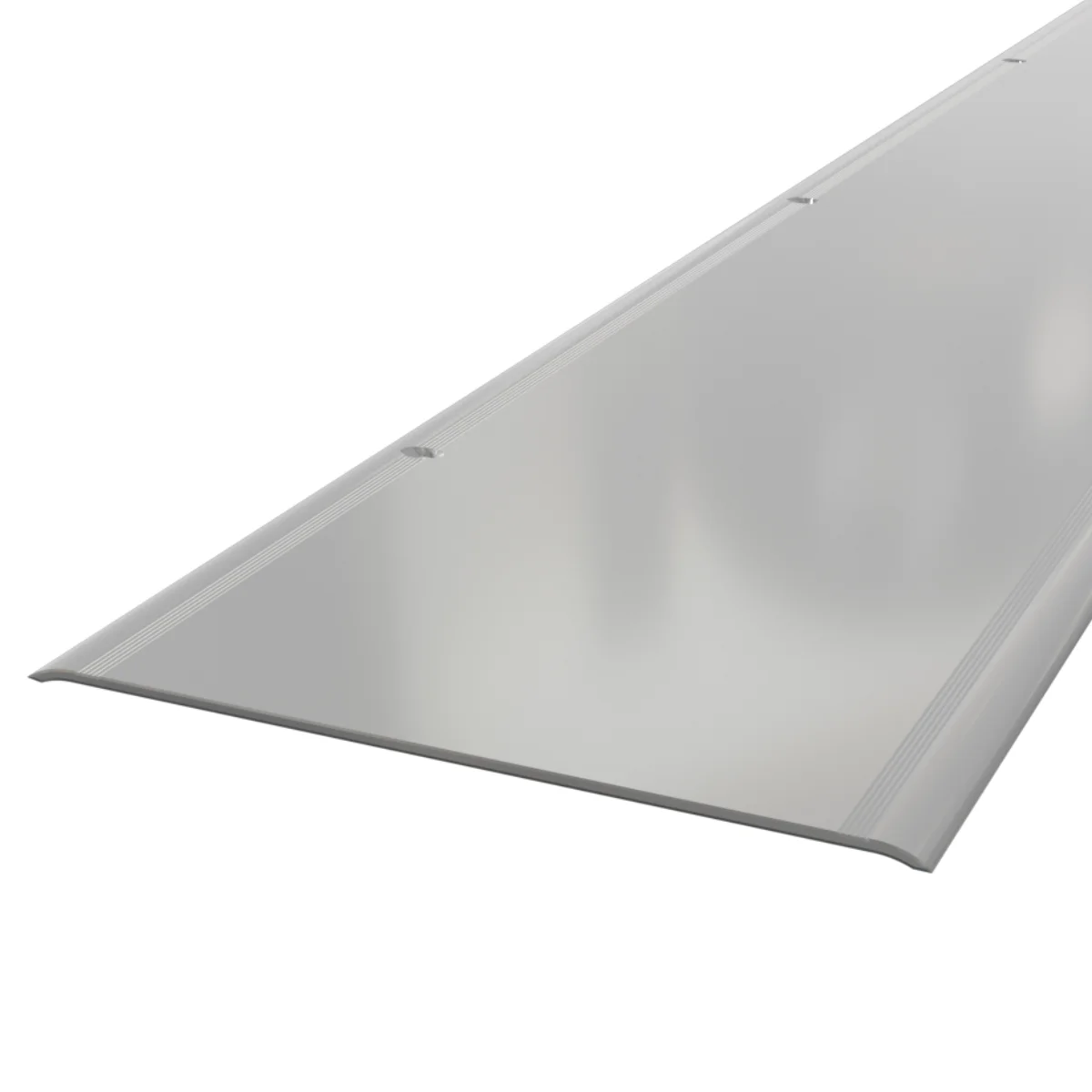

Expansion Joints GASKET COVER CJV
Fastening joint cover
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat
ORIENTATION: vertical
CHARACTERISTICS:
- For openings up to 120 mm
- Made of raw aluminium
- Aesthetic and economical joint cover
This drilled and bent profile is the most economical solution for closing expansion joints. Available from stock, this raw aluminum joint cover can be delivered quickly to your construction site.
Description
Shipping & Delivery
Related products
Expansion Joints JHR 5.12
Floor joints with insert
Heavy Duty Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special wide-width floor expansion joint
- Special for heavy car traffic
- For opening joints from 80 to 300 mm
Floor expansion joint made of aluminium angles and a flexible black or grey insert to absorb expansion movements. Can be used for concrete, screed, tile expansion joints and up to 100 mm. Suitable for semi-heavy traffic, it will be suitable for the passage of tired-type forklifts and heavy traffic of light vehicles.
Expansion Joints JHR 5.10
Floor joints with insert
Brass Floor Expansion Joint
MATERIAL: Brass
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Main course only
CHARACTERISTICS:
- Expansion joint with flexible insert
- Brass gasket for a luxury finish
Brass floor expansion joint composed of an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, marble, etc. For indoor or outdoor floor joints up to 30 mm. Suitable for pedestrian and non-intensive light vehicle traffic.
Expansion Joints JDV 4.12
Special Large Seismic Motion Vertical Expansion Joint
Expansion joint for false ceilings
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special expansion joint for large seismic movements
- Vertical installation: façade, wall and ceiling
- For opening joints from 50 to 200 mm
Expansion joint for ceilings for opening joints up to 200 mm.
This seismic expansion joint allows for large multidirectional movements.
Expansion Joints JDV 4.08
Special Vertical Expansion Joint External Insulation
Vertical expansion joint
MATERIAL: PVC
Nitrile
COLOUR: White
MODEL: Flat and Angle
CHARACTERISTICS:
- Vertical expansion joint
- Special insulation from the outside
- For 30 mm opening joints
Specially designed for the treatment of expansion joints in buildings made with external insulation.
It consists of:
- a fibre mesh for perfect adhesion to the plaster and easy positioning,
- a nitrile membrane to ensure the tightness of the system,
- a cladding of UV-resistant PVC closing profiles.
Expansion Joints JDV 4.07
Special Vertical Expansion Joint for Large Multidirectional Movements
Seismic Vertical Expansion Joint
MATERIAL: Aluminium
EPDM
COLOUR: Black
Grey
MODEL: Main course only
CHARACTERISTICS:
- Seismic expansion joint
- Vertical installation of façade, wall and ceiling
- For opening joints up to 600 mm
Vertical expansion joint for facades, walls and ceilings for opening joints up to 600 mm.
Allows you to absorb large multidirectional movements.
Expansion Joints JDV 4.06
Vertical expansion joint for walls, facades and ceilings
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
MODEL: Flat and Angle
CHARACTERISTICS:
- For opening joints up to 60 mm
- Vertical installation of façade, wall and ceiling
- Available from stock
The expansion joint for walls, facades and ceilings consists of two raw aluminium angles and a flexible nitrile insert. The side angles are covered with cellular foam that compensates for unevenness in the surfaces.
Expansion Joints Flexible Blanking Profile PSR
Flexible sealing profiles
MATERIAL: Nitrile
PVC
COLOUR: Black
Grey
RAL shades
MODEL: Main course only
CHARACTERISTICS:
- Cost-effective product, quick installation
- For non-circulatable horizontal and vertical joints
- For opening joints between 10 and 90 mm
Recessed flexible blanking profiles are ideal for the quick and economical construction of vertical joints, exterior or interior, or ceiling joints.
PSRs have a "cap" shaped upper part that provides coverage and hides any irregularities that the joint may have.
Expansion Joints GASKET COVER CJ PVC
PVC joint covers
MATERIAL: PVC
COLOUR: White
Beige
Grey
MODEL: Flat and Angle
CHARACTERISTICS:
- Aesthetic, decorative and economical
- Easy and quick to install, without drilling or gluing
- For opening joints from 10 to 120 mm
PVC clip-on joint covers are aesthetic, decorative and economical.
Easy and quick to install, without drilling or gluing, they have different models of clips(S, SLL, XL or XXL) suitable for all joint openings from 10 to 120 mm.
