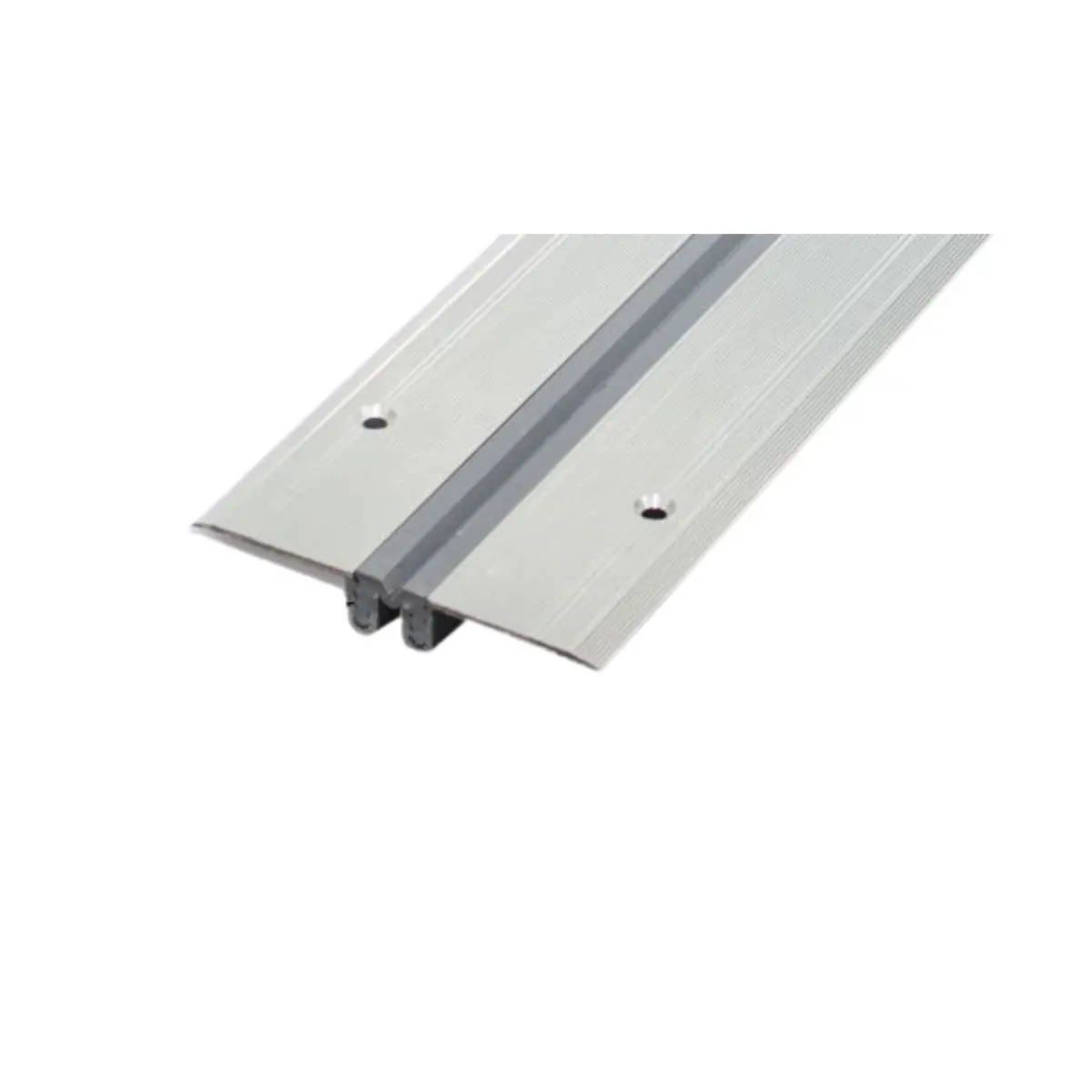

EXPANSION JOINT SMALL SURFACE MOUNTED
Product Specification
Small Surface Mounted Expansion Joint Series for different uses of wall floor and ceiling & to suit the project requirement. Specifications with a ASTM STANDARD. With a combination of 6063 GRADE T5 Aluminium and Nitriflex insert which is Antistatic, Hrdroscopic and Thermoplastic in nature. Also available in all Metal .i.e. Cover Plates as Aluminium Cover Joints and HD CLASS III SEISIMIC EXPANSION JOINT COVERS.
