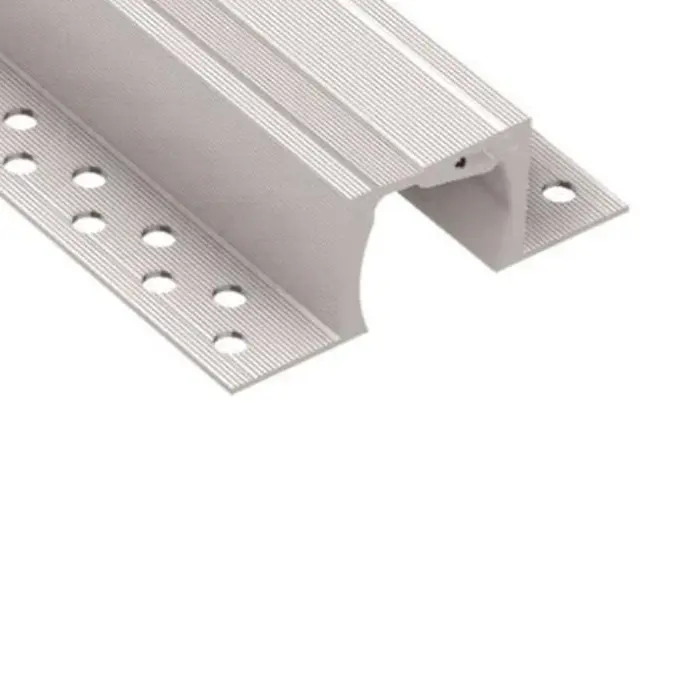

EXPANSION JOINT COVERS FOR EMBEDDED EXPANSION JOINT SERIES
Product Specification
EMBEDDED EXPANSION JOINT SERIES IN ALL METAL & A COMBINATION OF INSERT / SEAL & ALUMINIUM
Description
Shipping & Delivery
Related products
Expansion Joints JDV 4.16
Seismic Expansion Joint for Suspended Ceilings
Expansion joint for suspended ceilings
MATERIAL: aluminium
Vulcanized thermoplastic
MODEL: Flat
Angle
CHARACTERISTICS:
- For opening up to 250 mm
- For false ceilings
- Seismic expansion joint
Seismic expansion joint for suspended ceilings with 50% movement.
Composed of two aluminium angles and a flexible TPV insert. To ensure a better hold, a self-centering pivot is available from the 150 mm opening.
The hangers are not supplied with the ceiling expansion joint.
Expansion Joints JDV 4.10
Special Vertical Expansion Joint Large Seismic Movements
Seismic Vertical Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special expansion joint for large seismic movements
- Vertical installation: façade, wall and ceiling
- For opening joints from 50 to 200 mm
All-metal vertical expansion joint for train stations, airports, shopping malls...
These models consist of springs that allow large seismic movements.
Expansion Joints JDV 4.08
Special Vertical Expansion Joint External Insulation
Vertical expansion joint
MATERIAL: PVC
Nitrile
COLOUR: White
MODEL: Flat and Angle
CHARACTERISTICS:
- Vertical expansion joint
- Special insulation from the outside
- For 30 mm opening joints
Specially designed for the treatment of expansion joints in buildings made with external insulation.
It consists of:
- a fibre mesh for perfect adhesion to the plaster and easy positioning,
- a nitrile membrane to ensure the tightness of the system,
- a cladding of UV-resistant PVC closing profiles.
Expansion Joints JDV 4.04
Galvanized Steel Exterior and Interior Wall Expansion Joint
Steel expansion profile with nitrile insert
MATERIAL: Galvanized steel
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- For 30 to 50 mm opening joints
- Laying under plaster
- Recessed vertical expansion joint
Vertical expansion joints in galvanized steel for facades, walls and ceilings composed of two pre-drilled recessed galvanized steel angles and an interchangeable flexible nitrile insert to absorb small multidirectional movements.
Expansion Joints JDV 4.02
Vertical expansion joint for facades, walls and ceilings
Seismic expansion joint for vertical application
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- For opening joints from 40 to 200 mm
- Seismic expansion joint
- Vertical installation of façade, wall and ceiling
Seismic vertical expansion joint in anodized aluminum composed of pre-drilled angles and a central part that allows ample movements to be absorbed.
It is ideally suited for application on walls, facades and ceilings. Available in 3 ml length.
Expansion Joints Flexible Blanking Profile PSR
Flexible sealing profiles
MATERIAL: Nitrile
PVC
COLOUR: Black
Grey
RAL shades
MODEL: Main course only
CHARACTERISTICS:
- Cost-effective product, quick installation
- For non-circulatable horizontal and vertical joints
- For opening joints between 10 and 90 mm
Recessed flexible blanking profiles are ideal for the quick and economical construction of vertical joints, exterior or interior, or ceiling joints.
PSRs have a "cap" shaped upper part that provides coverage and hides any irregularities that the joint may have.
Expansion Joints GASKET COVER CJ Brass
Brass joint cover
MATERIAL: Brass COLOR: raw press MODEL: Dish only CHARACTERISTICS:- Aesthetic, decorative and economical.
- Easy and quick to install, without drilling or gluing.
- For opening joints from 10 to 60 mm.
Expansion Joints GASKET COVER CJ Alu
Aluminum joint covers
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Aesthetic, decorative and economical
- Easy and quick to install, without drilling or gluing
- For opening joints from 10 to 120 mm
Aluminium clip-on joint covers are aesthetic, decorative and economical.
Easy and quick to install, without drilling or gluing, they have different clip models (S, SLL, XL or XXL) suitable for all joint openings from 10 to 120 mm.
