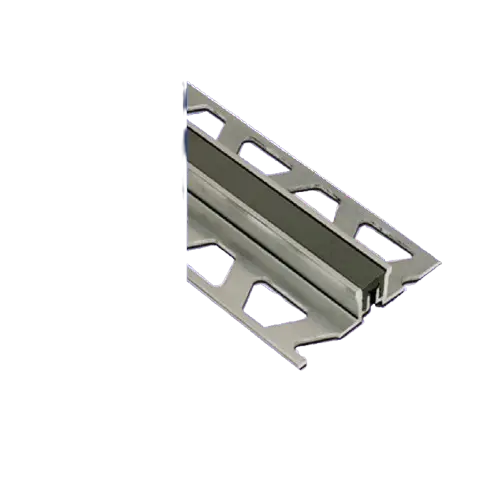

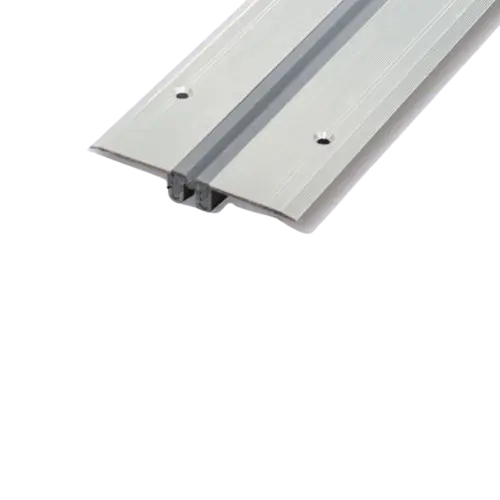

EXPANSION JOINT SURFACE MOUNTED
Product Specification
EXPANSION JOINT SURFACE MOUNTED
EXPANSION JOINT SURFACE MOUNTED COVERS ARE FIXED WITH A SCREW IN FIXING ON THE TOP OF FINISHED FLOOR WALLS AND CEILING. AVAILABLE FOR A EXPANSION JOINT GAP SIZE OF 20 MM TO 300 MM.
Description
Shipping & Delivery
Related products
Expansion Joints JHR 5.18
Floor joints with insert
Special Wide-Width Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special wide-width floor expansion joint
- Smooth Insert Option
- For opening joints from 100 to 500 mm
Extra-wide floor expansion joint consisting of 2 identical profiles, usually from the JDH 5.02 or JDH 5.04 series (see Technical Sheets), connected to each other by an aluminium supporting structure. The black or grey soft inserts are available in different widths (50 and 65 mm) to absorb more or less significant three-dimensional expansion movements.
Expansion Joints JHR 5.08
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Reinforced Floor Expansion Joint
- Special for large widths
- For opening joints up to 125 mm
Wide-width floor expansion joint for outdoor and indoor use made of aluminium angles and 2 interchangeable flexible nitrile inserts for any type of finish: expansion joint for slabs, screeds, tiles, etc.
Expansion Joints JDH 5.02
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Standard Floor Expansion Joint
- Smooth Insert Option
- For opening joints up to 60 mm
Standard floor expansion joint for exterior and interior made of pre-drilled aluminum angles and an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, etc. Suitable for light traffic, it will also be suitable for the passage of light trolleys with tyres and non-intensive traffic of light vehicles.
Expansion Joints JDV 4.14
Seismic expansion joints
Special Seismic Vertical Expansion Joint for False Ceilings
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
MODEL: Flat and Angle
CHARACTERISTICS:
- Seismic expansion joint
- Special suspended ceilings
- For opening joints from 30 to 100 mm
Expansion joint for "false ceiling" composed of aluminium angles, an interchangeable central insert to absorb large multidirectional movements.
Specially adapted for suspended ceilings.
For suspended ceiling joints or "false ceilings" up to 350 mm opening.
Expansion Joints JDV 4.12
Special Large Seismic Motion Vertical Expansion Joint
Expansion joint for false ceilings
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special expansion joint for large seismic movements
- Vertical installation: façade, wall and ceiling
- For opening joints from 50 to 200 mm
Expansion joint for ceilings for opening joints up to 200 mm.
This seismic expansion joint allows for large multidirectional movements.
Expansion Joints JDV 4.02
Vertical expansion joint for facades, walls and ceilings
Seismic expansion joint for vertical application
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- For opening joints from 40 to 200 mm
- Seismic expansion joint
- Vertical installation of façade, wall and ceiling
Seismic vertical expansion joint in anodized aluminum composed of pre-drilled angles and a central part that allows ample movements to be absorbed.
It is ideally suited for application on walls, facades and ceilings. Available in 3 ml length.
Expansion Joints Flexible Blanking Profile PSR
Flexible sealing profiles
MATERIAL: Nitrile
PVC
COLOUR: Black
Grey
RAL shades
MODEL: Main course only
CHARACTERISTICS:
- Cost-effective product, quick installation
- For non-circulatable horizontal and vertical joints
- For opening joints between 10 and 90 mm
Recessed flexible blanking profiles are ideal for the quick and economical construction of vertical joints, exterior or interior, or ceiling joints.
PSRs have a "cap" shaped upper part that provides coverage and hides any irregularities that the joint may have.
Expansion Joints GASKET COVER CJ Inox
Stainless steel joint covers
MATERIAL: Stainless steel
COLOUR: polished glossy | raw | grain leather | brush grit 220
MODEL: Flat
CHARACTERISTICS:
- Aesthetic, decorative and economical
- Easy and quick to install, without drilling or gluing
- For opening joints from 10 to 50 mm
Stainless steel clip-on joint covers are designed to protect and aesthetically clad the joints of facades, walls and ceilings. Easy and quick to install, they do not require drilling or gluing.
