Tile Trims & Expansion Joins

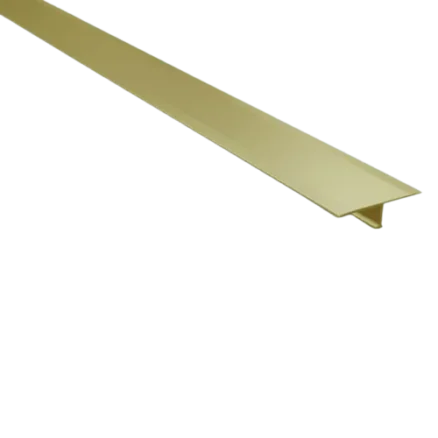

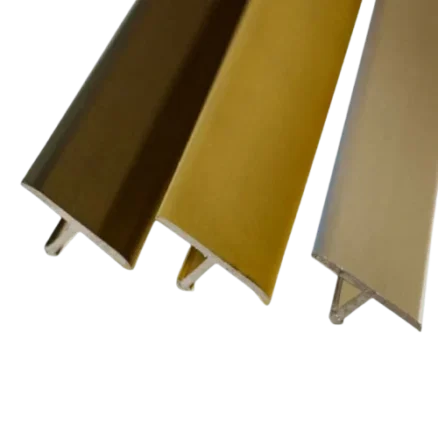

Carpet trim T edging metal profile

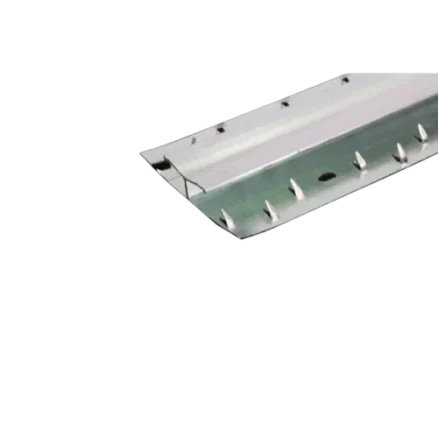

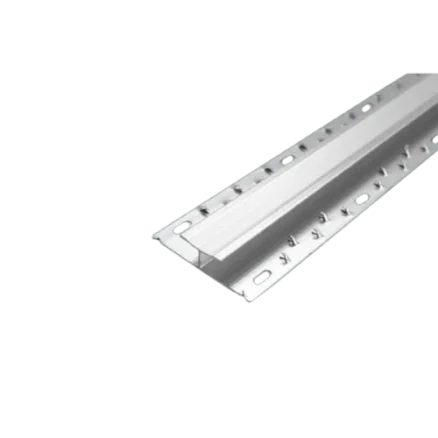

Carpet trim H edging metal profile
Carpet trim Z edging metal profile

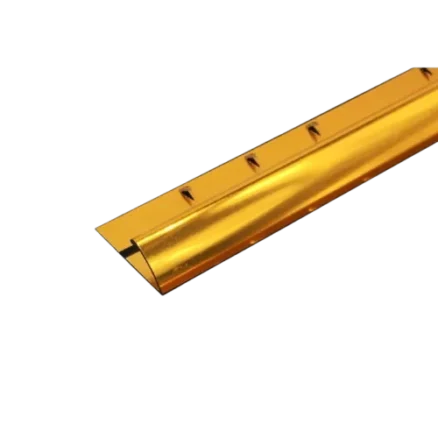

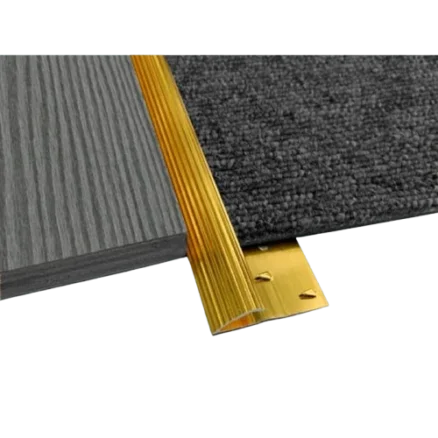

Carpet trim Round edging metal profile

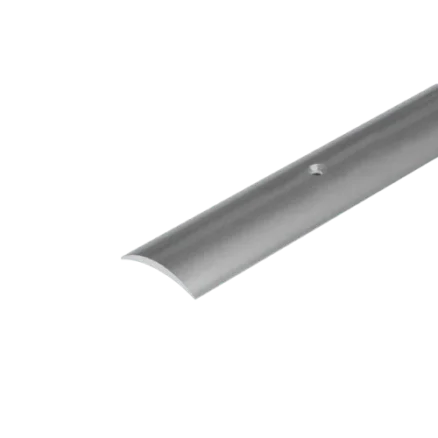

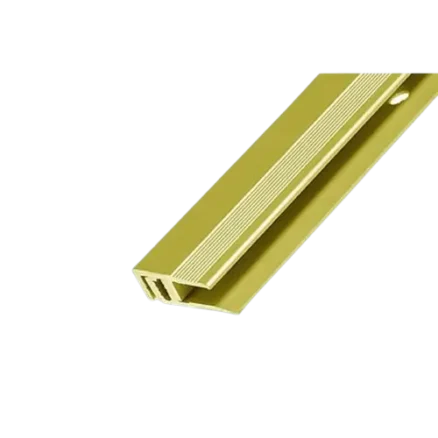

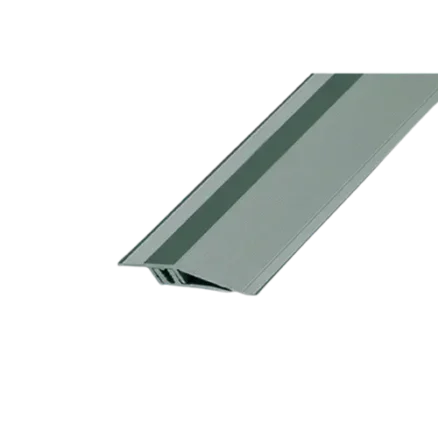

Carpet Trim Transition edging metal profile

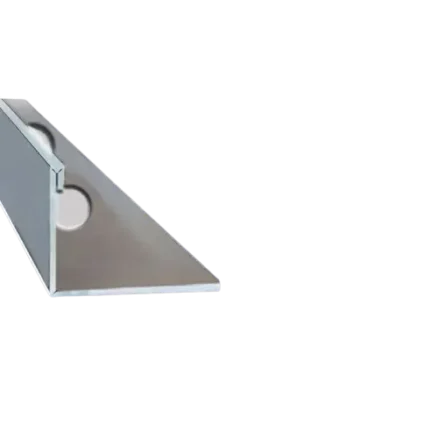

Tile trims DUK
Product Specification :
Tile trims Square shape, round shape, L shape, Listello, corner trim, L shape HD floor divider, T shape, transition joint, square side open shape and close square shape trim. Finishes: Mirror, brushed, satin and coloured trims for ceramic edges & floor dividing strips. L shape Sizes: 8mm, 10mm, 12.5mm 15mm, 20mm, 25mm, 30mm Square shape sizes: 8mm, 10mm, 12.5mm, 15mm, 20mm Round shape sizes: 8mm, 10mm, 12.5mm
Expansion Joints JDT 7.04
Expansion Joints JDT 7.03
Roof joints
Waterproof Roof Expansion Joint
MATERIAL: Aluminium
Stainless steel
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Seismic expansion joint
- Waterproof, it is specially designed for roofs
- For opening joints from 50 to 200 mm
Waterproof seismic joint designed to effectively and durably treat the closure of roof expansion joints. Composed of a continuous waterproof membrane and a covering, this system allows large three-dimensional movements.

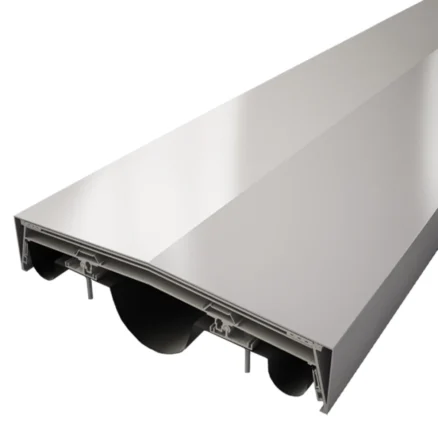

Expansion Joints JDT 7.02
Roof joints
Waterproof Roof Expansion Joint
MATERIAL: Aluminium
Stainless steel
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Seismic expansion joint
- Waterproof, it is specially designed for roofs
- For opening joints from 50 to 200 mm
Roof expansion joint consisting of a waterproof EPDM membrane, a support system fixed to the concrete elements (parapets) and an aluminium piece (covering) that clips onto the support element. For the protection and waterproofing of expansion joints in roofs. Available for joints up to 200 mm opening.

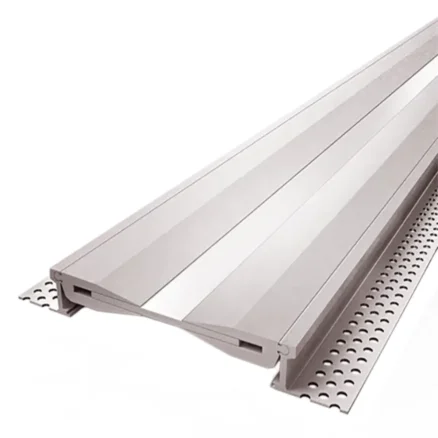

Expansion Joints JHR 6:16
Seismic expansion joints
Special Wide-Width Floor Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Seismic expansion joint
- Special for large widths
- For opening joints up to 250 mm
Seismic floor expansion joint for exterior and interior consisting of two angles and a thick central piece made of aluminum allowing significant expansion and contraction movements, as well as vertical and shear movements. Can be used for any type of finish: expansion joint for concrete, screed, tiles, etc. For indoor or outdoor floor joints up to 250 mm. Suitable for heavy light vehicle traffic.

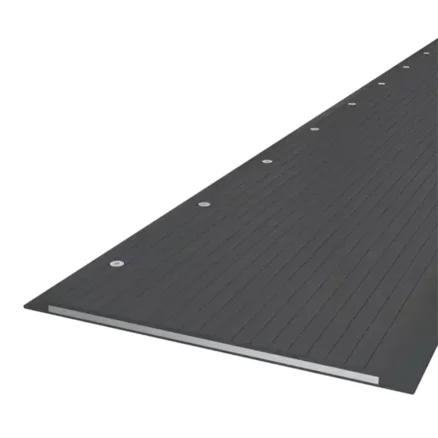

Expansion Joints JHR 5.35
Parking Joints
Parking Floor Expansion Joint
MATERIAL: Rubber
Steel
COLOUR: Black
MODEL: FLAT
CHARACTERISTICS:
- Highly durable, suitable for heavy light vehicle traffic
- For opening joints up to 600 mm
- Reinforced with a steel plate and rubber finish
Floor expansion joints for car parks, access ramps, esplanades, and any other place with or without low-speed vehicle traffic. Widths available for openings up to 600 mm. Profile reinforced with a steel plate and rubber finish to absorb noise pollution due to passing vehicles.

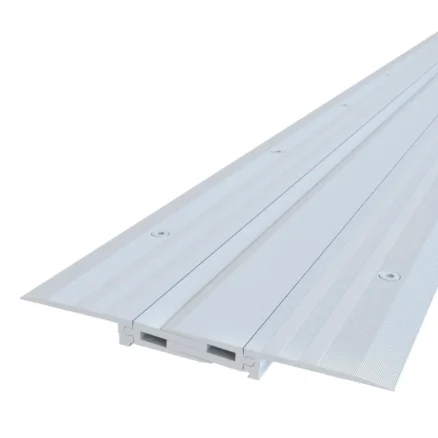

Expansion Joints JHR 6.36
All metal floor joints
Expansion Joint of Floor Inserts on Finished Floor
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Expansion joint with built-up installation on finished floor
- Special intensive passages
- For opening joints between 65 and 135 mm
All-aluminum floor expansion joint for exterior and interior installation installed. The two upper aluminium pieces slide between them, thus absorbing three-dimensional movements: horizontal, vertical and shear. Can be used on finished floors for any type of finish: expansion joints for concrete, screed, tiles, etc.

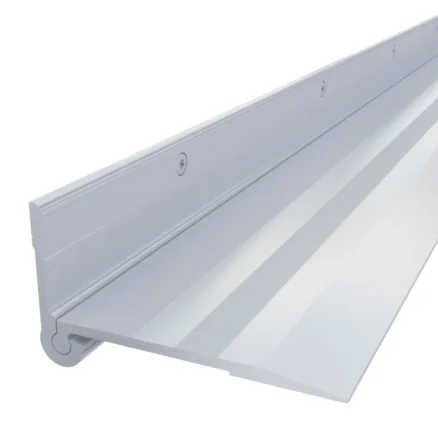

Expansion Joints JHR 6.35
All metal floor joints
Floor expansion joint adapted to differences in levels
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Expansion joint adapted to level differences up to 80 mm
- Special for intensive car crossings
- For opening joints between 50 and 300 mm
All-metal floor expansion joint for exterior and interior for any type of finish: expansion joint for slab, screed, tile, marble etc. Ideal for level differences of up to 80 mm.

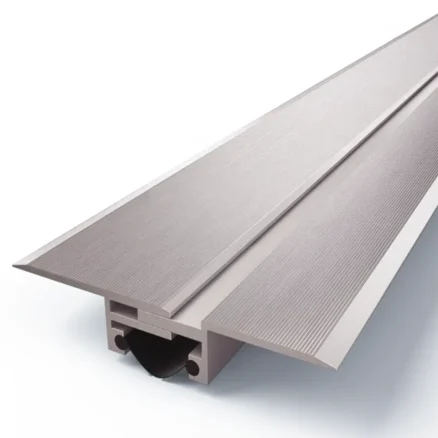

Expansion Joints JHR 6.34
All metal floor joints
Heavy Duty Floor Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Expansion joint with built-up installation on finished floor
- Special intensive passages
- For opening joints between 35 and 50 mm
All-aluminum floor expansion joint for exterior and interior installation installed. The two aluminium parts slide between them, thus absorbing expansion movements. Can be used on finished floors for any type of finish: concrete, screed, tiles, etc.
For indoor or outdoor floor joints up to 35 or 50 mm.

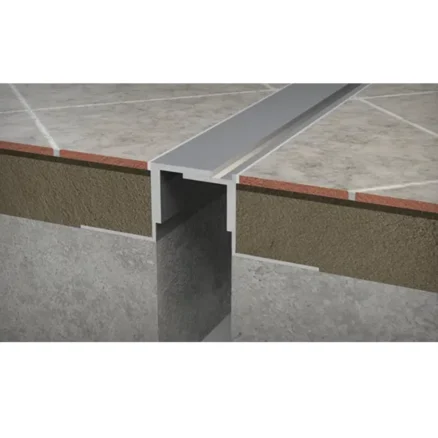

Expansion Joints JHR 6.32
All metal floor joints
All-Stainless Steel Floor Expansion Joint
MATERIAL: Stainless steel
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Special harsh environments: chemical, industrial, food, etc.
- Coverings: concrete, screed, tiles, etc.
- For opening joints between 20 and 60 mm
All-stainless steel floor expansion joint for exterior and interior consisting of two lateral angles mechanically fixed on support brackets and two central stainless steel parts allowing expansion and contraction movements. Can be used for any type of finish: concrete, screed, tile, marble,

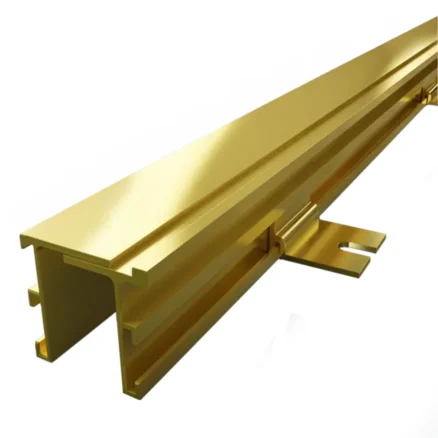

Expansion Joints JHR 6.30
All metal floor joints
Floor Expansion Joint Special Brass Luxury Finish
MATERIAL: Brass
COLOUR: Natural
MODEL: Main course only
CHARACTERISTICS:
- All-brass expansion joint, luxury finish
- Ideal for all types of coverings: slabs, screeds, tiles, marble, etc.
- For opening joints up to 30 mm
All-brass floor expansion joint for interiors consisting of two lateral angles fitted on fixing brackets and a central brass part allowing expansion and contraction movements. Can be used for any type of finish: concrete, screed, tile, marble, etc.

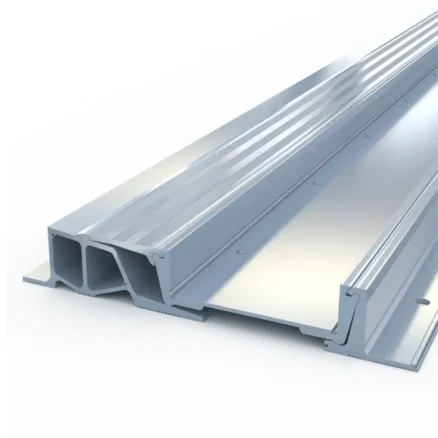

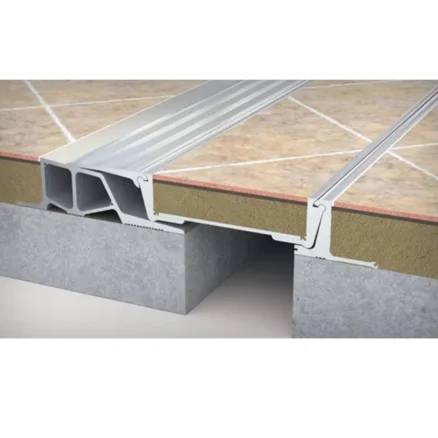

Expansion Joints JHR 6.29
All metal floor joints
Large Width All Metal Special Floor Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Profile for large seismic movements
- Special for large widths and suitable for taking up large seismic movements
- For opening joints between 100 and 600 mm
Seismic aluminium floor expansion joint is a galvanised steel top for tiles or stone (maximum height of 20 mm). Profile for the treatment of wide joints and specially adapted to take up large seismic movements

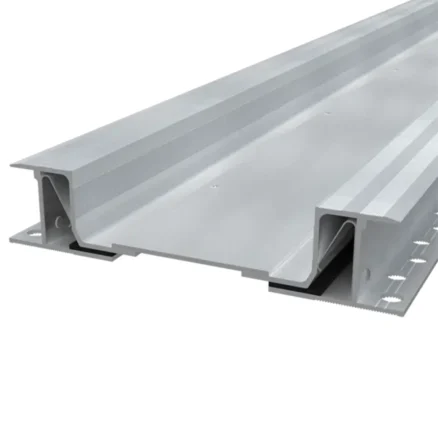

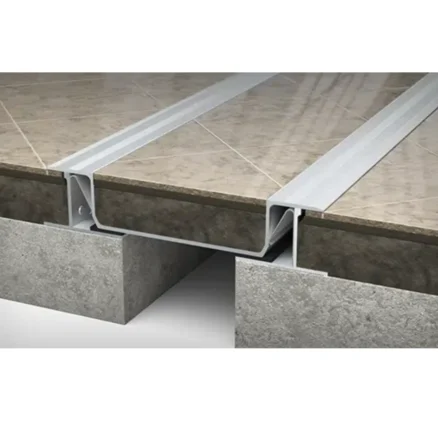

Expansion Joints JHR 6.28
All metal floor joints
Special Floor Expansion Joint for Tiles or Stone
MATERIAL: Aluminium
Stainless steel
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Composed of aluminum bases and a stainless steel or aluminum center tray
- Special for tiles or stone
- For opening joints between 50 and 200 mm
All-metal floor expansion joint for indoor and outdoor special tiles or stone in stainless steel or aluminum. For indoor or outdoor floor joints up to 200 mm with movements. Suitable for pedestrian and light trolley traffic.

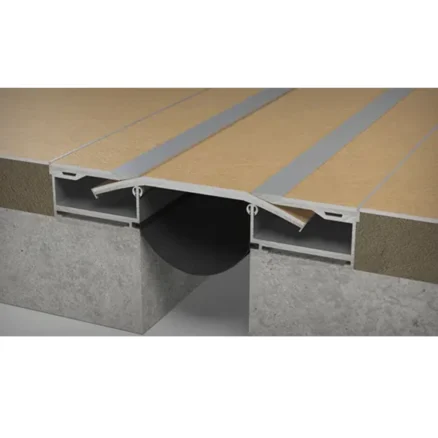

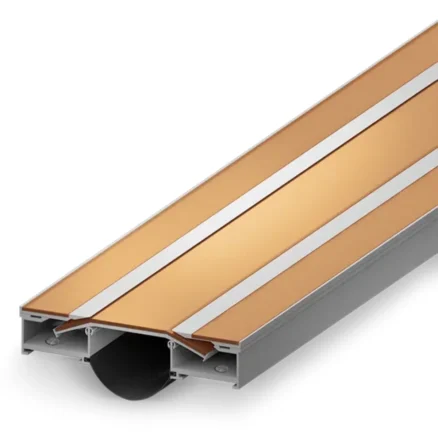

Expansion Joints JHR 6.26
All metal floor joints
Special Seismic Ground Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Seismic expansion joint
- Special for resilient floors
- For opening joints between 50 and 200 mm
Seismic ground expansion joint allowing large movements. Specially designed for use with soft floors. It consists of angles and a central aluminium plate with a 3 mm reserve, allowing it to absorb expansion, contraction, as well as vertical and shear movements.
Used with flexible floors, it is particularly suitable for hospitals, nursing homes, schools, shops,

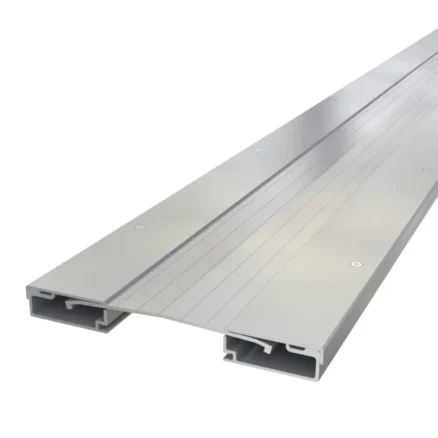

Expansion Joints JHR 6.24
All metal floor joints
Seismic Stainless Steel Ground Expansion Joint
MATERIAL: Stainless steel
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Seismic expansion joint
- Special very large movements: 50%
- For opening joints between 50 and 200 mm
Seismic ground expansion joint allowing large movements. Consisting of aluminium bases and stainless steel uppers, it absorbs expansion, contraction, vertical and shear movements.
Can be used for any type of finish: expansion joint for concrete, screed, tiles, etc.

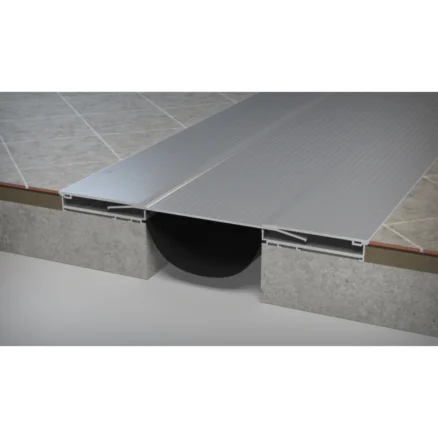

Expansion Joints JHR 6.22
All metal floor joints
Aluminum Seismic Ground Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Seismic expansion joint
- Special large movements: 50%
- For opening joints between 50 and 150 mm
Seismic high-motion ground expansion joint consisting of angles and an aluminum center plate to absorb expansion, contraction, as well as vertical and shear movements.
Can be used for any type of finish: concrete, screed, tiles, etc.

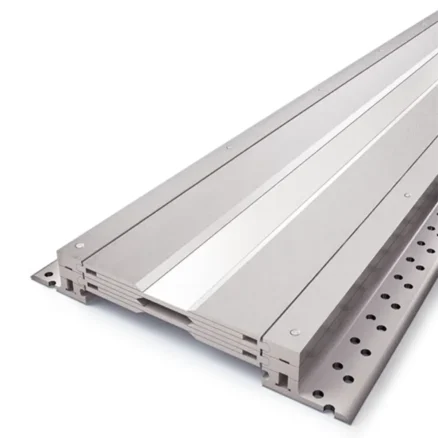

Expansion Joints JHR 6.20
All metal floor joints
Special Wide-Width Floor Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- All-metal floor expansion joint
- Special for large widths
- For opening joints between 135 and 340 mm
All aluminum seismic floor expansion joint for exterior and interior. The aluminium inner parts slide between them, thus absorbing three-dimensional movements: horizontal, vertical and shear. Interchangeable aluminium tops with the option of a nitrile levelling strip.
Can be used for any type of finish: expansion joint for concrete, screed, tiles, etc.

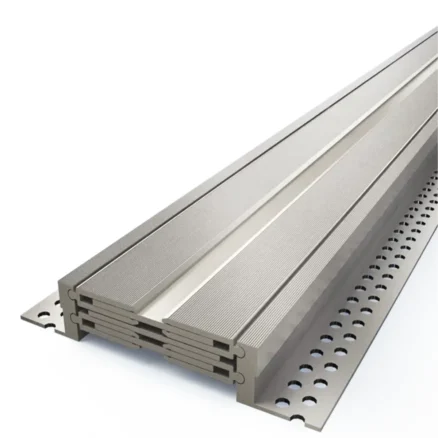

Expansion Joints JHR 6.18
All metal floor joints
Special Floor Expansion Joint Large Multidirectional Movements
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Seismic expansion joint
- Special for large widths
- For opening joints between 135 and 340 mm
All aluminum seismic floor expansion joint for exterior and interior. The aluminium inner parts slide between them, thus absorbing three-dimensional movements: horizontal, vertical and shear. Aluminum tops with optional installation of a nitrile leveling strip. Can be used for any type of finish: concrete, screed, tiles, etc.
