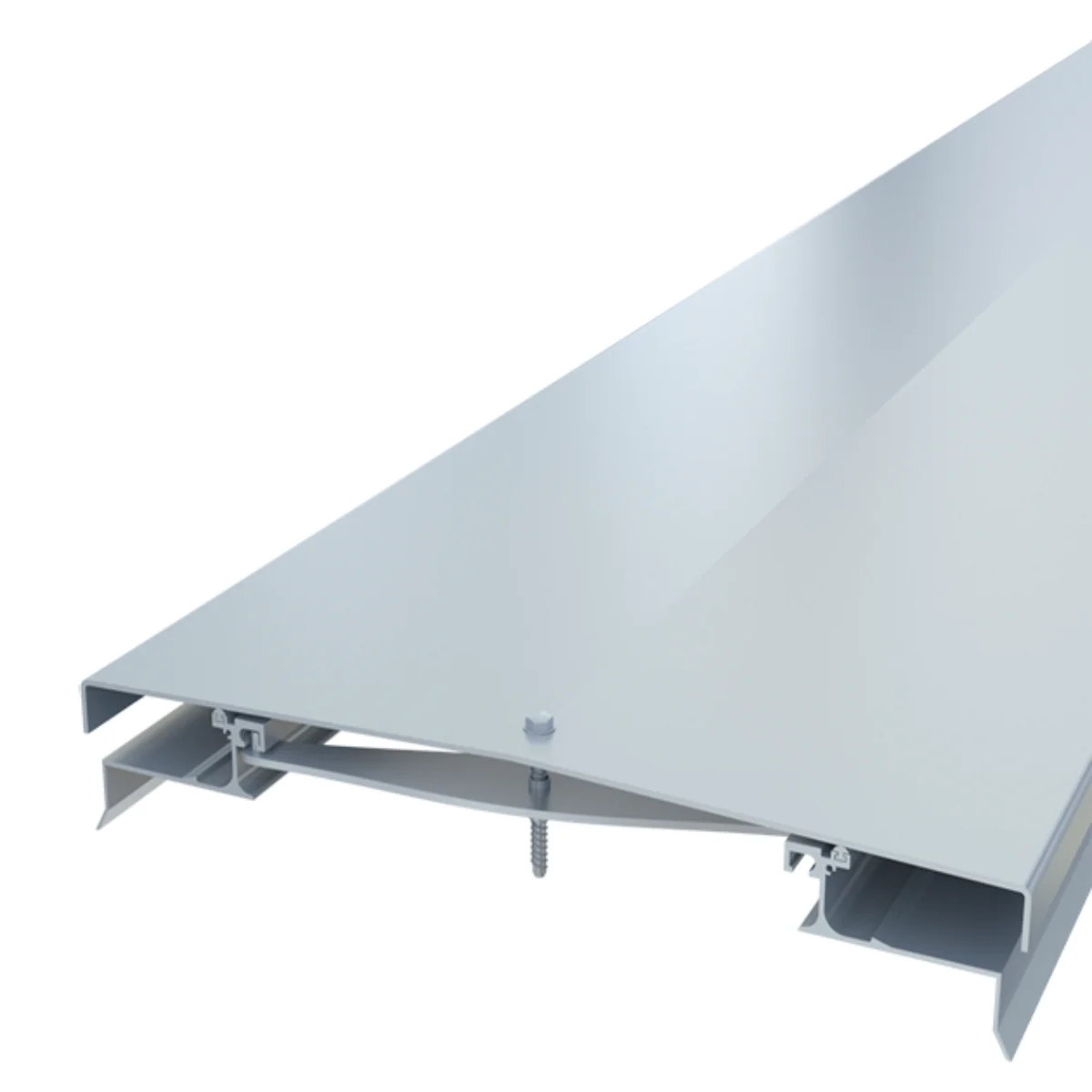

Expansion Joints JDT 7.03
Roof joints
Waterproof Roof Expansion Joint
MATERIAL: Aluminium
Stainless steel
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Seismic expansion joint
- Waterproof, it is specially designed for roofs
- For opening joints from 50 to 200 mm
Waterproof seismic joint designed to effectively and durably treat the closure of roof expansion joints. Composed of a continuous waterproof membrane and a covering, this system allows large three-dimensional movements.
Description
Shipping & Delivery
Related products
Expansion Joints JHR 5.18
Floor joints with insert
Special Wide-Width Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special wide-width floor expansion joint
- Smooth Insert Option
- For opening joints from 100 to 500 mm
Extra-wide floor expansion joint consisting of 2 identical profiles, usually from the JDH 5.02 or JDH 5.04 series (see Technical Sheets), connected to each other by an aluminium supporting structure. The black or grey soft inserts are available in different widths (50 and 65 mm) to absorb more or less significant three-dimensional expansion movements.
Expansion Joints JHR 5.10
Floor joints with insert
Brass Floor Expansion Joint
MATERIAL: Brass
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Main course only
CHARACTERISTICS:
- Expansion joint with flexible insert
- Brass gasket for a luxury finish
Brass floor expansion joint composed of an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, marble, etc. For indoor or outdoor floor joints up to 30 mm. Suitable for pedestrian and non-intensive light vehicle traffic.
Expansion Joints JHR 5.08
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Reinforced Floor Expansion Joint
- Special for large widths
- For opening joints up to 125 mm
Wide-width floor expansion joint for outdoor and indoor use made of aluminium angles and 2 interchangeable flexible nitrile inserts for any type of finish: expansion joint for slabs, screeds, tiles, etc.
Expansion Joints JDH 5.02
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Standard Floor Expansion Joint
- Smooth Insert Option
- For opening joints up to 60 mm
Standard floor expansion joint for exterior and interior made of pre-drilled aluminum angles and an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, etc. Suitable for light traffic, it will also be suitable for the passage of light trolleys with tyres and non-intensive traffic of light vehicles.
Expansion Joints JDV 4.16
Seismic Expansion Joint for Suspended Ceilings
Expansion joint for suspended ceilings
MATERIAL: aluminium
Vulcanized thermoplastic
MODEL: Flat
Angle
CHARACTERISTICS:
- For opening up to 250 mm
- For false ceilings
- Seismic expansion joint
Seismic expansion joint for suspended ceilings with 50% movement.
Composed of two aluminium angles and a flexible TPV insert. To ensure a better hold, a self-centering pivot is available from the 150 mm opening.
The hangers are not supplied with the ceiling expansion joint.
Expansion Joints JDV 4.12
Special Large Seismic Motion Vertical Expansion Joint
Expansion joint for false ceilings
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special expansion joint for large seismic movements
- Vertical installation: façade, wall and ceiling
- For opening joints from 50 to 200 mm
Expansion joint for ceilings for opening joints up to 200 mm.
This seismic expansion joint allows for large multidirectional movements.
Expansion Joints JDV 4.10
Special Vertical Expansion Joint Large Seismic Movements
Seismic Vertical Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special expansion joint for large seismic movements
- Vertical installation: façade, wall and ceiling
- For opening joints from 50 to 200 mm
All-metal vertical expansion joint for train stations, airports, shopping malls...
These models consist of springs that allow large seismic movements.
Expansion Joints GASKET COVER CJP
Joint Covers & PSO
MATERIAL: Aluminium
galvanized steel
stainless steel
COLOUR: RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- For new work and renovation
- For opening joints up to 500 mm
- Possibility of tailor-made, contact us
CJP's folded aluminium and stainless steel joint covers are designed to protect and cover the joints of facades, walls, ceilings and floors.
Economical, easy and quick to install, pre-drilled or not, floor or wall joint covers are used in new work and renovation to cover expansion joints up to 500 mm of opening.
