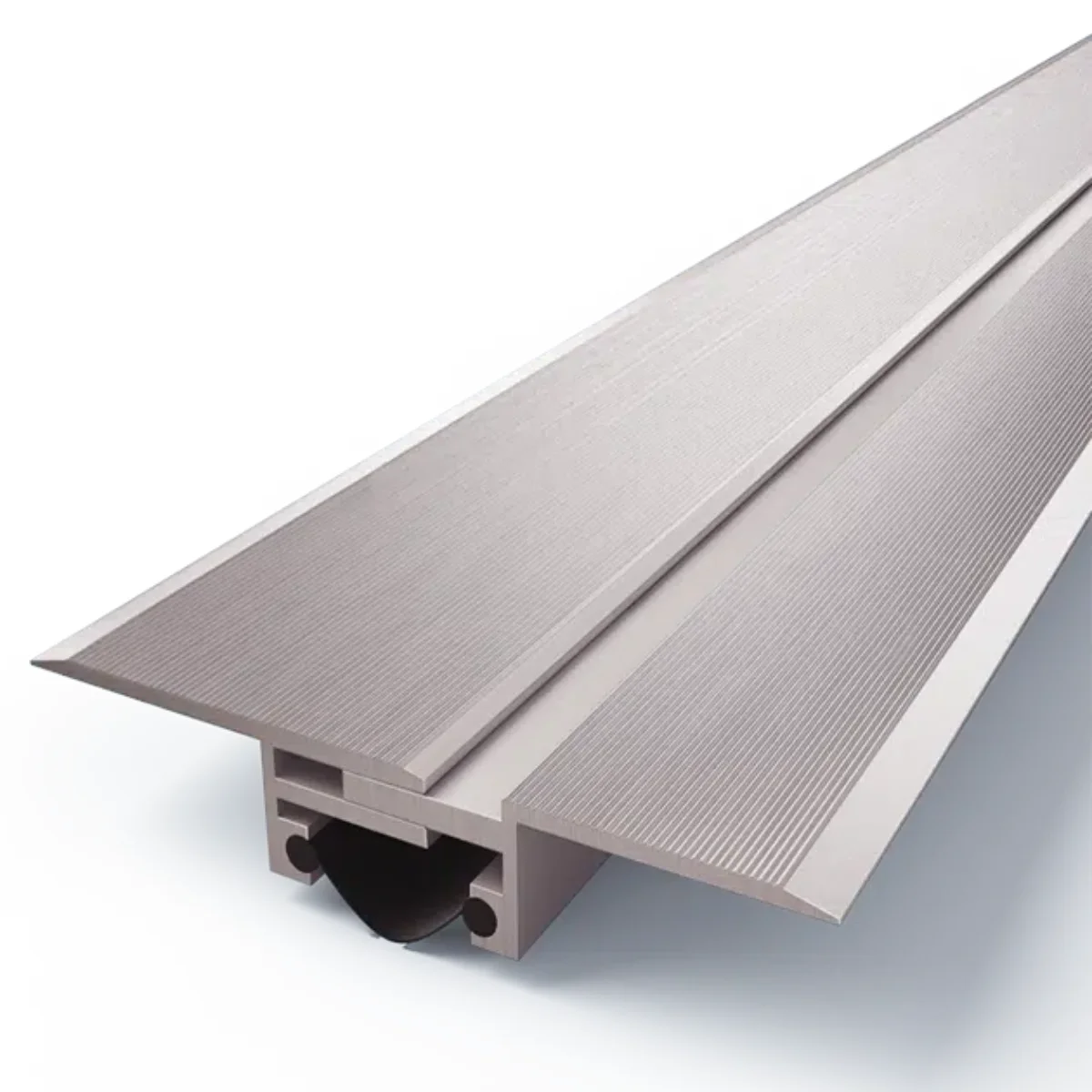

Expansion Joints JHR 6.34
All metal floor joints
Heavy Duty Floor Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Expansion joint with built-up installation on finished floor
- Special intensive passages
- For opening joints between 35 and 50 mm
All-aluminum floor expansion joint for exterior and interior installation installed. The two aluminium parts slide between them, thus absorbing expansion movements. Can be used on finished floors for any type of finish: concrete, screed, tiles, etc.
For indoor or outdoor floor joints up to 35 or 50 mm.
For indoor or outdoor floor joints up to 35 or 50 mm.
Description
Shipping & Delivery
Related products
Expansion Joints JHR 5.04
Floor joints with insert
Floor Expansion Joint with Insert
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Reinforced Floor Expansion Joint
- Smooth Insert Option
- For opening joints from 30 to 60 mm
Reinforced floor expansion joint for exterior and interior made of pre-drilled aluminium angles and an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, etc.
Expansion Joints JDV 4.16
Seismic Expansion Joint for Suspended Ceilings
Expansion joint for suspended ceilings
MATERIAL: aluminium
Vulcanized thermoplastic
MODEL: Flat
Angle
CHARACTERISTICS:
- For opening up to 250 mm
- For false ceilings
- Seismic expansion joint
Seismic expansion joint for suspended ceilings with 50% movement.
Composed of two aluminium angles and a flexible TPV insert. To ensure a better hold, a self-centering pivot is available from the 150 mm opening.
The hangers are not supplied with the ceiling expansion joint.
Expansion Joints JDV 4.10
Special Vertical Expansion Joint Large Seismic Movements
Seismic Vertical Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special expansion joint for large seismic movements
- Vertical installation: façade, wall and ceiling
- For opening joints from 50 to 200 mm
All-metal vertical expansion joint for train stations, airports, shopping malls...
These models consist of springs that allow large seismic movements.
Expansion Joints JDV 4.08
Special Vertical Expansion Joint External Insulation
Vertical expansion joint
MATERIAL: PVC
Nitrile
COLOUR: White
MODEL: Flat and Angle
CHARACTERISTICS:
- Vertical expansion joint
- Special insulation from the outside
- For 30 mm opening joints
Specially designed for the treatment of expansion joints in buildings made with external insulation.
It consists of:
- a fibre mesh for perfect adhesion to the plaster and easy positioning,
- a nitrile membrane to ensure the tightness of the system,
- a cladding of UV-resistant PVC closing profiles.
Expansion Joints JDV 4.07
Special Vertical Expansion Joint for Large Multidirectional Movements
Seismic Vertical Expansion Joint
MATERIAL: Aluminium
EPDM
COLOUR: Black
Grey
MODEL: Main course only
CHARACTERISTICS:
- Seismic expansion joint
- Vertical installation of façade, wall and ceiling
- For opening joints up to 600 mm
Vertical expansion joint for facades, walls and ceilings for opening joints up to 600 mm.
Allows you to absorb large multidirectional movements.
Expansion Joints PSO
Flexible sealing profiles
MATERIAL: Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Cost-effective product, quick installation
- For non-circulatable horizontal and vertical joints
- For opening joints between 10 and 120 mm
Recessed flexible blanking profiles are ideal for the quick and economical construction of vertical joints, exterior or interior, or ceiling joints.
The PSO flexible profiles are installed, which allows for a quality finish. They can also be glued.
Expansion Joints Flexible Blanking Profile CP
Flexible sealing profiles
MATERIAL: Vulcanized thermoplastic
COLOUR: Black
MODEL: Dish only
CHARACTERISTICS:
- Cost-effective product, quick installation
- Hydrocarbon and UV resistant profiles
- For opening joints between 25 and 100 mm
Flexible vulcanised thermoplastic shutter profiles designed to be recessed into the floor and fixed with a special adhesive. The internal dimples support up to 50% of multidirectional movement, while maintaining enough lift to absorb traffic. Hydrocarbon and UV resistant profiles, which must be installed at least 5 mm below the running surface.
Expansion Joints GASKET COVER CJP
Joint Covers & PSO
MATERIAL: Aluminium
galvanized steel
stainless steel
COLOUR: RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- For new work and renovation
- For opening joints up to 500 mm
- Possibility of tailor-made, contact us
CJP's folded aluminium and stainless steel joint covers are designed to protect and cover the joints of facades, walls, ceilings and floors.
Economical, easy and quick to install, pre-drilled or not, floor or wall joint covers are used in new work and renovation to cover expansion joints up to 500 mm of opening.
