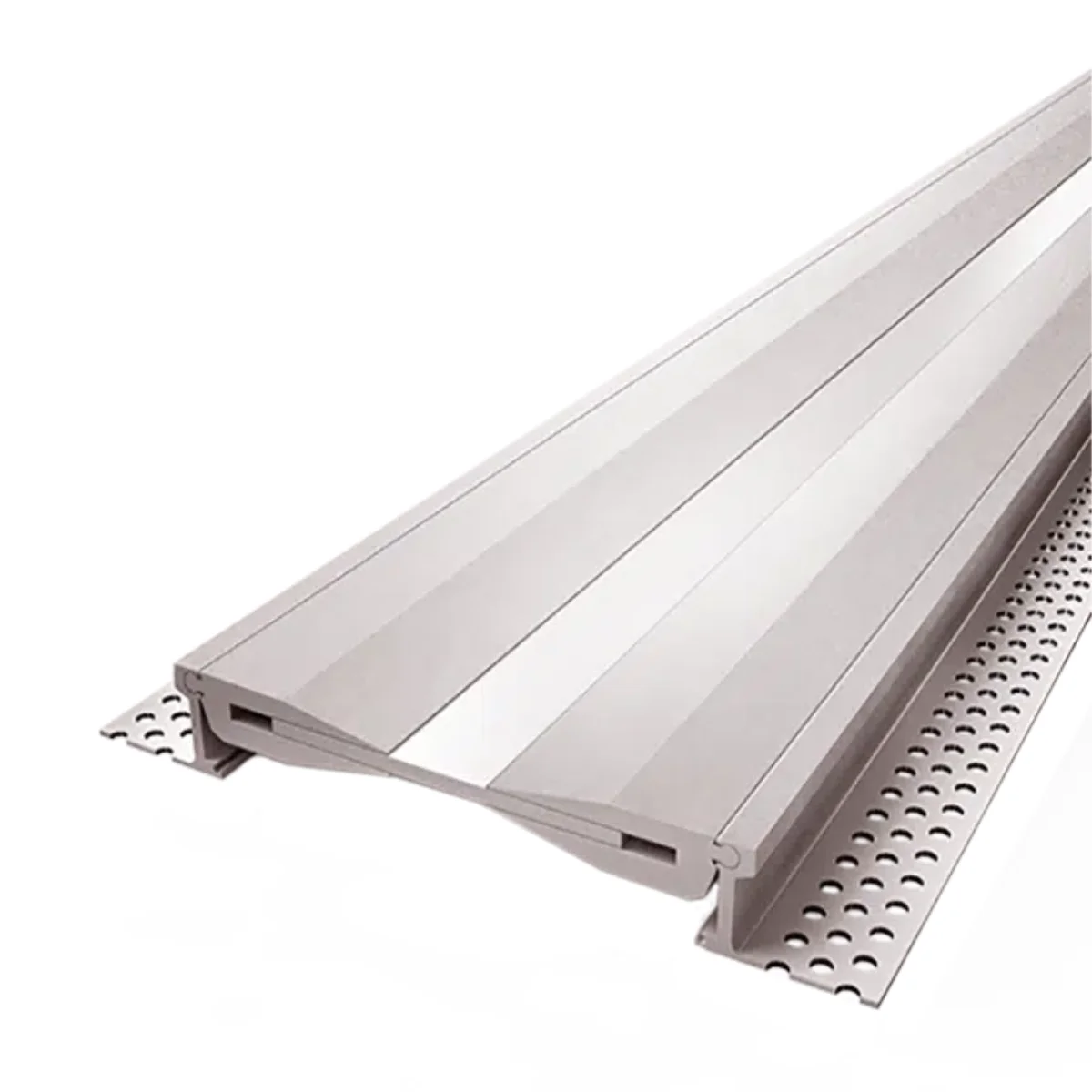

Expansion Joints JHR 6.16
All metal floor joints
Special Wide-Width Floor Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Seismic expansion joint
- Special for large widths
- For opening joints up to 250 mm
Seismic floor expansion joint for exterior and interior consisting of two angles and a thick central piece made of aluminum allowing significant expansion and contraction movements, as well as vertical and shear movements. Can be used for any type of finish: expansion joint for concrete, screed, tiles, etc. For indoor or outdoor floor joints up to 250 mm. Suitable for heavy light vehicle traffic.
Description
Shipping & Delivery
Related products
Expansion Joints JHR 5.18
Floor joints with insert
Special Wide-Width Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special wide-width floor expansion joint
- Smooth Insert Option
- For opening joints from 100 to 500 mm
Extra-wide floor expansion joint consisting of 2 identical profiles, usually from the JDH 5.02 or JDH 5.04 series (see Technical Sheets), connected to each other by an aluminium supporting structure. The black or grey soft inserts are available in different widths (50 and 65 mm) to absorb more or less significant three-dimensional expansion movements.
Expansion Joints JHR 5.08
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Reinforced Floor Expansion Joint
- Special for large widths
- For opening joints up to 125 mm
Wide-width floor expansion joint for outdoor and indoor use made of aluminium angles and 2 interchangeable flexible nitrile inserts for any type of finish: expansion joint for slabs, screeds, tiles, etc.
Expansion Joints JHR 5.04
Floor joints with insert
Floor Expansion Joint with Insert
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Reinforced Floor Expansion Joint
- Smooth Insert Option
- For opening joints from 30 to 60 mm
Reinforced floor expansion joint for exterior and interior made of pre-drilled aluminium angles and an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, etc.
Expansion Joints JDH 5.02 with Hoods
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
Brass or stainless steel
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Standard Floor Expansion Joint
- Smooth Insert Option
- For opening joints up to 60 mm
Floor expansion joint for exterior and interior made up of aluminium angles, an interchangeable flexible insert and metal covers in stainless steel, brass or aluminium, for all types of finishes: slab, screed, tile, etc. Suitable for light traffic, it will also be suitable for the passage of light trolleys with tyres and non-intensive traffic of light vehicles.
Expansion Joints JDV 4.10
Special Vertical Expansion Joint Large Seismic Movements
Seismic Vertical Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special expansion joint for large seismic movements
- Vertical installation: façade, wall and ceiling
- For opening joints from 50 to 200 mm
All-metal vertical expansion joint for train stations, airports, shopping malls...
These models consist of springs that allow large seismic movements.
Expansion Joints JDV 4.02
Vertical expansion joint for facades, walls and ceilings
Seismic expansion joint for vertical application
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- For opening joints from 40 to 200 mm
- Seismic expansion joint
- Vertical installation of façade, wall and ceiling
Seismic vertical expansion joint in anodized aluminum composed of pre-drilled angles and a central part that allows ample movements to be absorbed.
It is ideally suited for application on walls, facades and ceilings. Available in 3 ml length.
Expansion Joints Flexible Blanking Profile CP
Flexible sealing profiles
MATERIAL: Vulcanized thermoplastic
COLOUR: Black
MODEL: Dish only
CHARACTERISTICS:
- Cost-effective product, quick installation
- Hydrocarbon and UV resistant profiles
- For opening joints between 25 and 100 mm
Flexible vulcanised thermoplastic shutter profiles designed to be recessed into the floor and fixed with a special adhesive. The internal dimples support up to 50% of multidirectional movement, while maintaining enough lift to absorb traffic. Hydrocarbon and UV resistant profiles, which must be installed at least 5 mm below the running surface.
Expansion Joints GASKET COVER CJE-PF
Extruded, drilled and milled joint covers
MATERIAL: Aluminium
COLOUR: PAL Shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Economical joint cover, easy and quick installation
- For new work and renovation
- For opening joints up to 250 mm
CJE-PF joint covers are designed to protect and cover floor joints but can also be used on facades, walls and ceilings. Aesthetic, decorative and economical, they can be used indoors or outdoors. Pre-drilled and milled, they are easy to install, and are used in new work and renovation for joints from 10 to 250 mm of opening.
