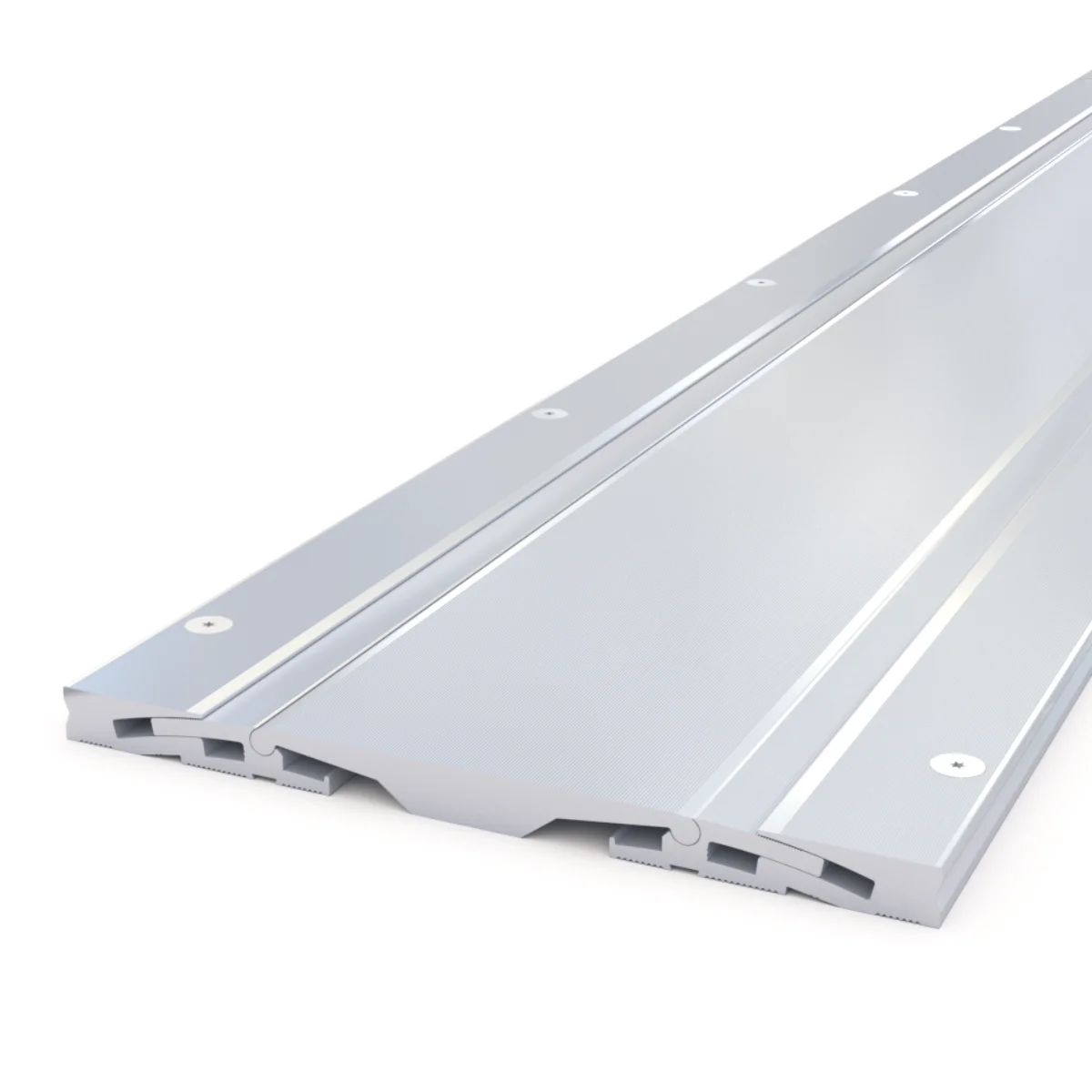

Expansion Joints JHR 6.14
All metal floor joints
Heavy Duty Floor Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Reinforced seismic expansion joint
- Special for heavy loads and heavy duty
- For opening joints up to 200 mm
Seismic all-metal ground expansion joint specially designed to withstand heavy loads: handling equipment, trucks. Can be used indoors and outdoors. The center pieces allow for significant expansion and contraction movements, as well as vertical and shear movements. Can be used for any type of finish: expansion joint for concrete, screed, tiles, etc.
Description
Shipping & Delivery
Related products
Expansion Joints JHR 5.18
Floor joints with insert
Special Wide-Width Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special wide-width floor expansion joint
- Smooth Insert Option
- For opening joints from 100 to 500 mm
Extra-wide floor expansion joint consisting of 2 identical profiles, usually from the JDH 5.02 or JDH 5.04 series (see Technical Sheets), connected to each other by an aluminium supporting structure. The black or grey soft inserts are available in different widths (50 and 65 mm) to absorb more or less significant three-dimensional expansion movements.
Expansion Joints JHR 5.10
Floor joints with insert
Brass Floor Expansion Joint
MATERIAL: Brass
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Main course only
CHARACTERISTICS:
- Expansion joint with flexible insert
- Brass gasket for a luxury finish
Brass floor expansion joint composed of an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, marble, etc. For indoor or outdoor floor joints up to 30 mm. Suitable for pedestrian and non-intensive light vehicle traffic.
Expansion Joints JDH 5.06
Floor joints with insert
Special Wide-Width Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special wide-width floor expansion joint
- For opening joints from 100 to 200 mm
Floor expansion joint made of aluminium angles and a smooth interchangeable central flexible insert, black or grey (other colours on request) to absorb expansion movements. Can be used for any type of finish: expansion joint for concrete, screed, tiles, etc. For indoor or outdoor floor joints.
Expansion Joints JHR 5.04
Floor joints with insert
Floor Expansion Joint with Insert
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Reinforced Floor Expansion Joint
- Smooth Insert Option
- For opening joints from 30 to 60 mm
Reinforced floor expansion joint for exterior and interior made of pre-drilled aluminium angles and an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, etc.
Expansion Joints JDH 5.02
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Standard Floor Expansion Joint
- Smooth Insert Option
- For opening joints up to 60 mm
Standard floor expansion joint for exterior and interior made of pre-drilled aluminum angles and an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, etc. Suitable for light traffic, it will also be suitable for the passage of light trolleys with tyres and non-intensive traffic of light vehicles.
Expansion Joints JDV 4.12
Special Large Seismic Motion Vertical Expansion Joint
Expansion joint for false ceilings
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special expansion joint for large seismic movements
- Vertical installation: façade, wall and ceiling
- For opening joints from 50 to 200 mm
Expansion joint for ceilings for opening joints up to 200 mm.
This seismic expansion joint allows for large multidirectional movements.
Expansion Joints GASKET COVER CJV
Fastening joint cover
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat
ORIENTATION: vertical
CHARACTERISTICS:
- For openings up to 120 mm
- Made of raw aluminium
- Aesthetic and economical joint cover
This drilled and bent profile is the most economical solution for closing expansion joints. Available from stock, this raw aluminum joint cover can be delivered quickly to your construction site.
Expansion Joints GASKET COVER CJE-PF
Extruded, drilled and milled joint covers
MATERIAL: Aluminium
COLOUR: PAL Shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Economical joint cover, easy and quick installation
- For new work and renovation
- For opening joints up to 250 mm
CJE-PF joint covers are designed to protect and cover floor joints but can also be used on facades, walls and ceilings. Aesthetic, decorative and economical, they can be used indoors or outdoors. Pre-drilled and milled, they are easy to install, and are used in new work and renovation for joints from 10 to 250 mm of opening.
