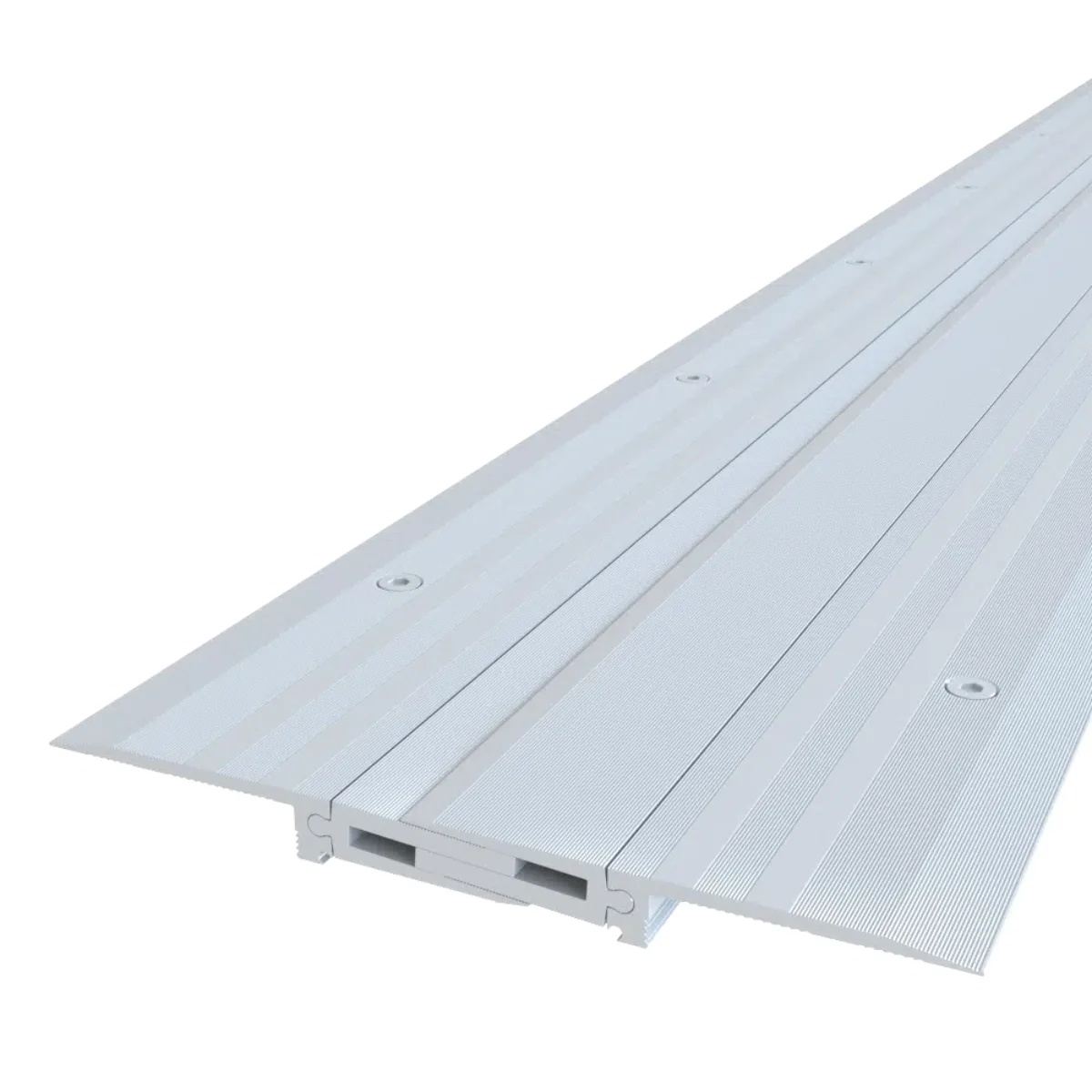

Expansion Joints JHR 6.36
All metal floor joints
Expansion Joint of Floor Inserts on Finished Floor
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Expansion joint with built-up installation on finished floor
- Special intensive passages
- For opening joints between 65 and 135 mm
All-aluminum floor expansion joint for exterior and interior installation installed. The two upper aluminium pieces slide between them, thus absorbing three-dimensional movements: horizontal, vertical and shear. Can be used on finished floors for any type of finish: expansion joints for concrete, screed, tiles, etc.
