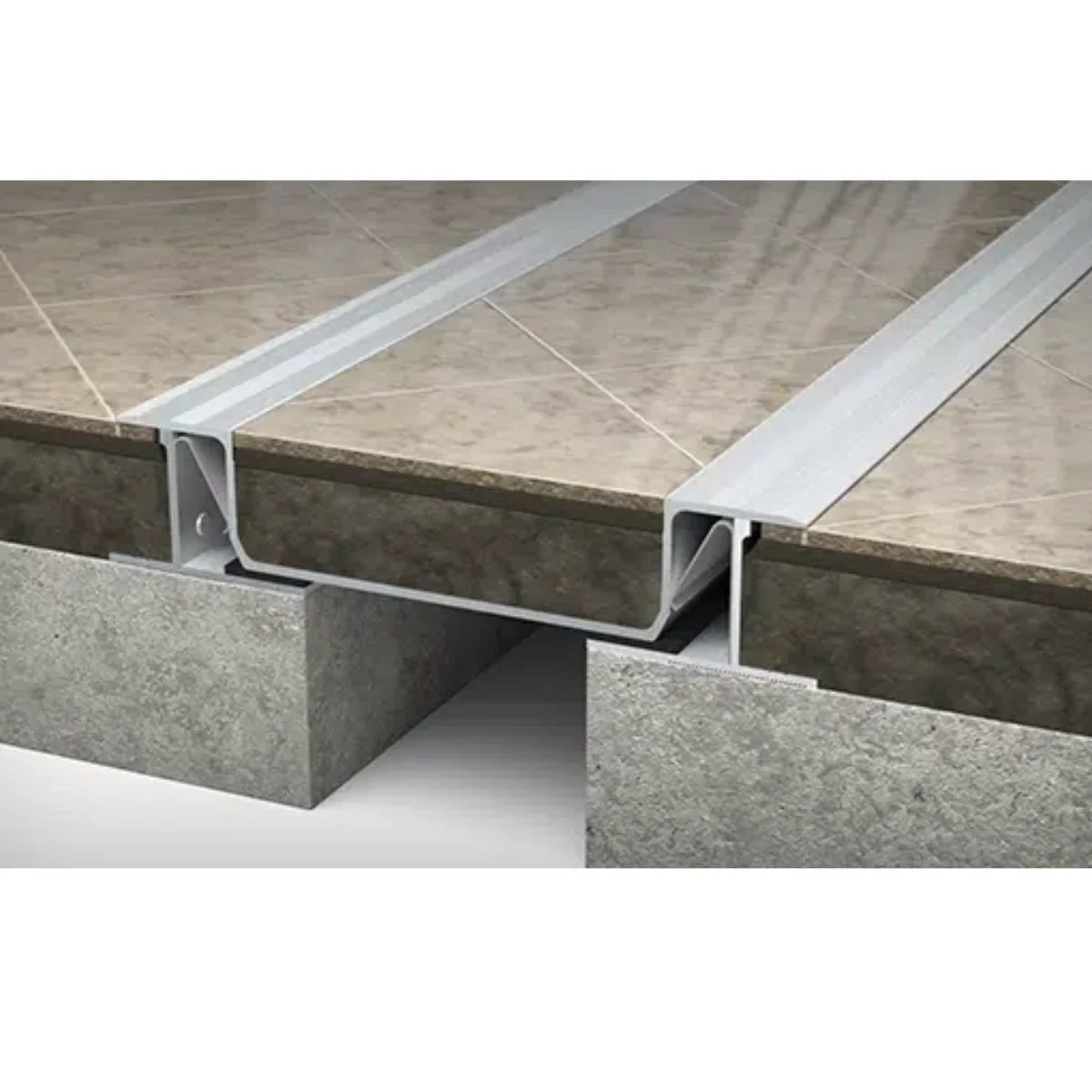

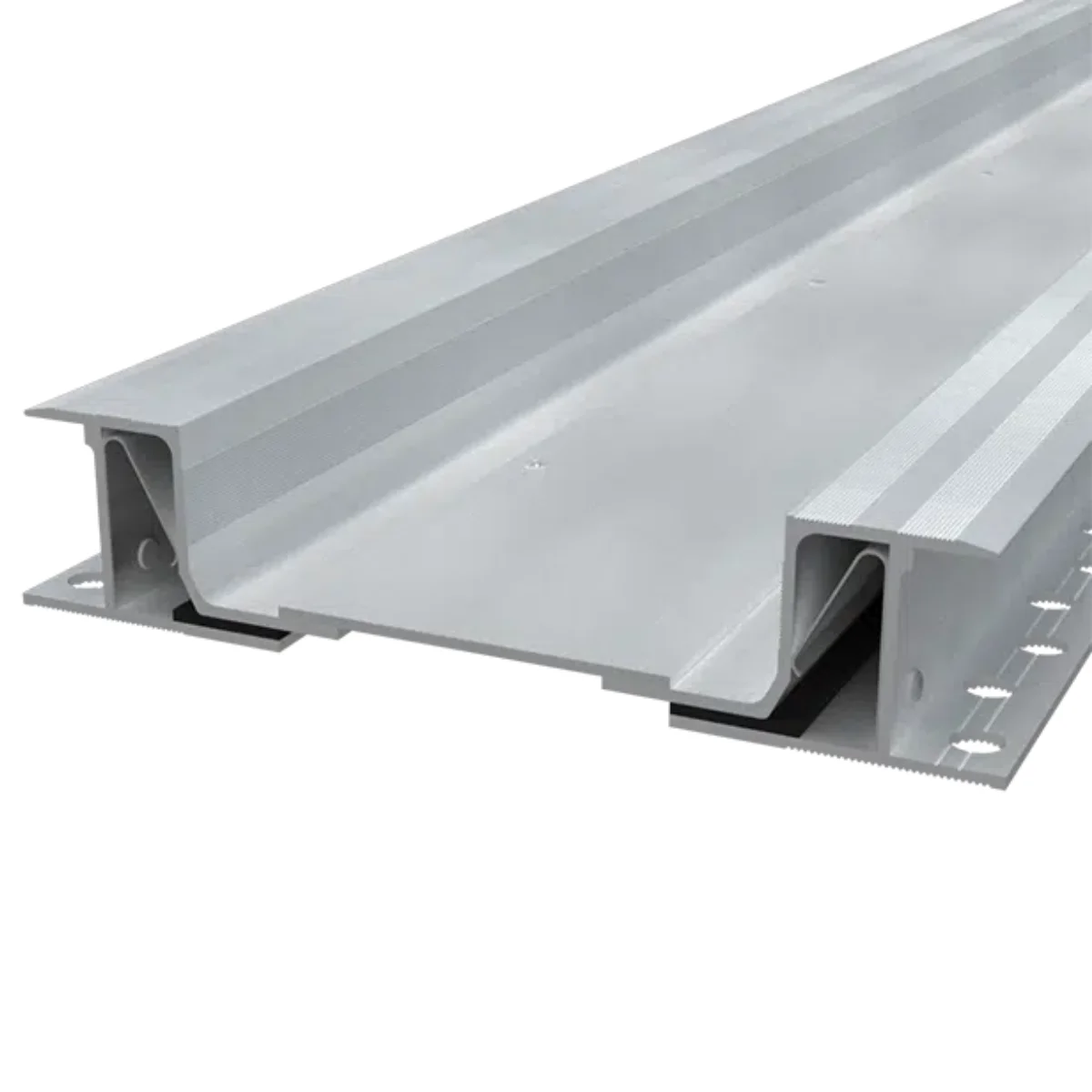

Expansion Joints JHR 6.28
All metal floor joints
Special Floor Expansion Joint for Tiles or Stone
MATERIAL: Aluminium
Stainless steel
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Composed of aluminum bases and a stainless steel or aluminum center tray
- Special for tiles or stone
- For opening joints between 50 and 200 mm
All-metal floor expansion joint for indoor and outdoor special tiles or stone in stainless steel or aluminum. For indoor or outdoor floor joints up to 200 mm with movements. Suitable for pedestrian and light trolley traffic.
