Expansion Joints JHR 6.26
All metal floor joints
Special Seismic Ground Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Seismic expansion joint
- Special for resilient floors
- For opening joints between 50 and 200 mm

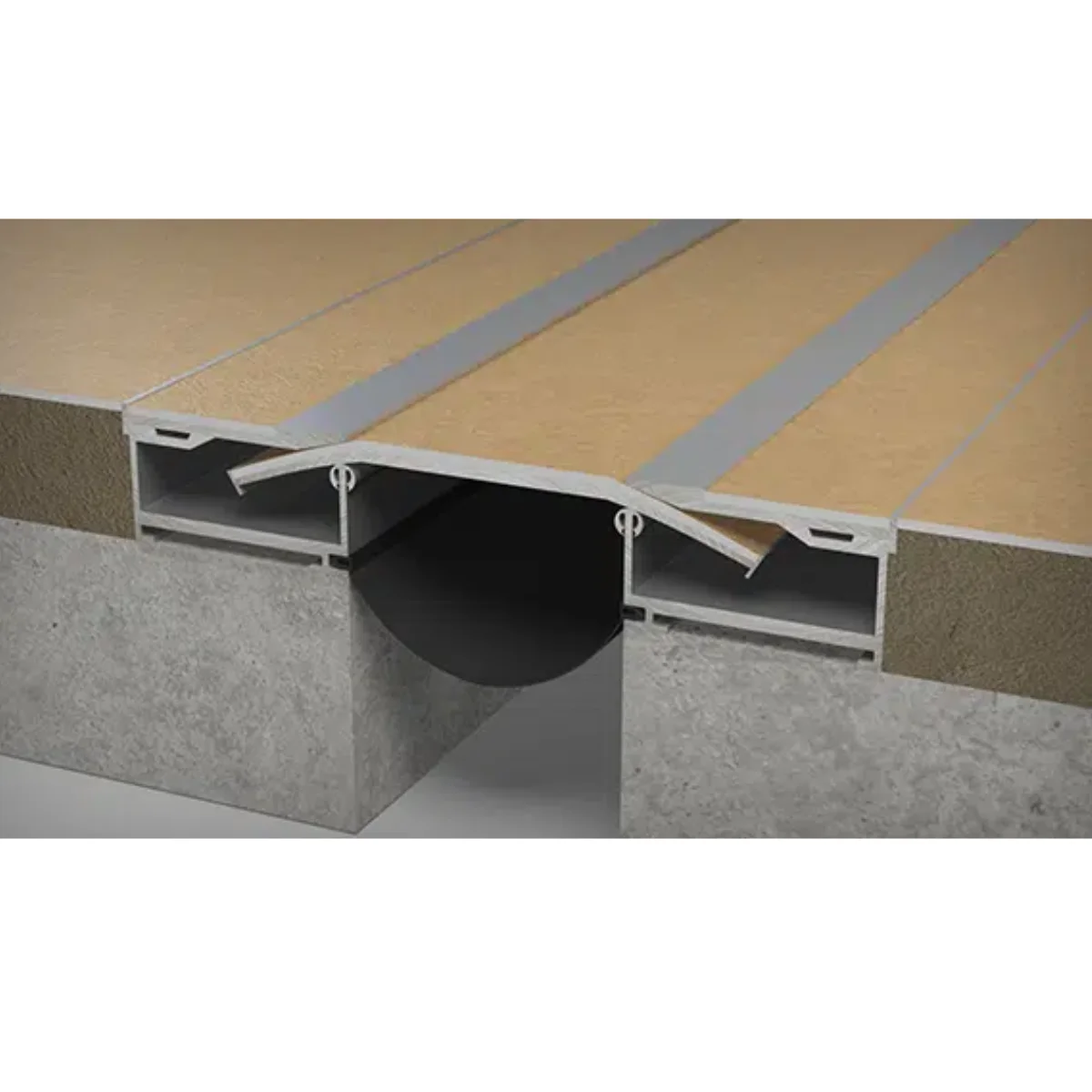

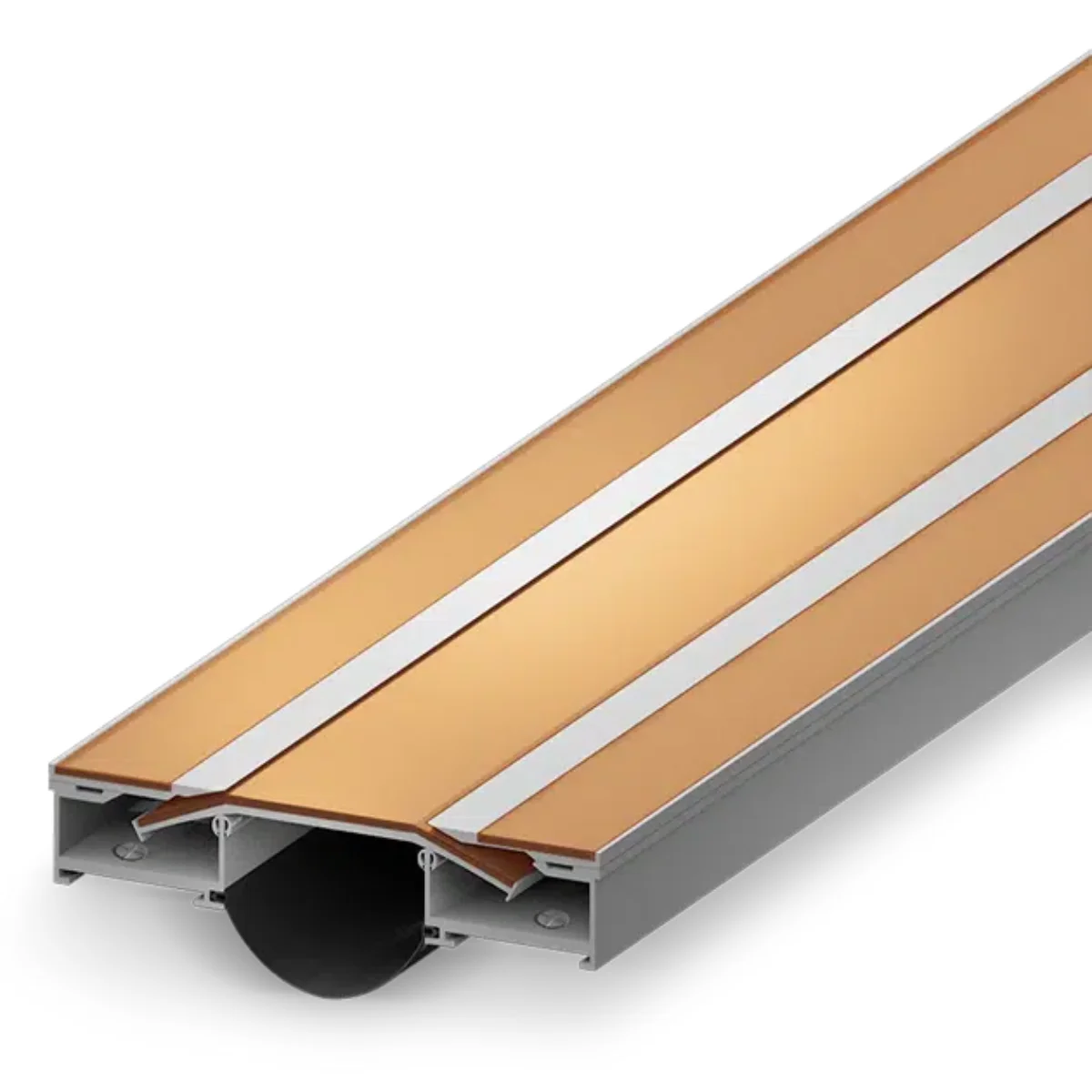

Seismic ground expansion joint allowing large movements. Specially designed for use with soft floors. It consists of angles and a central aluminium plate with a 3 mm reserve, allowing it to absorb expansion, contraction, as well as vertical and shear movements.
Used with flexible floors, it is particularly suitable for hospitals, nursing homes, schools, shops,
Used with flexible floors, it is particularly suitable for hospitals, nursing homes, schools, shops,
