Expansion Joints JHR 6.24
All metal floor joints
Seismic Stainless Steel Ground Expansion Joint
MATERIAL: Stainless steel
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Seismic expansion joint
- Special very large movements: 50%
- For opening joints between 50 and 200 mm

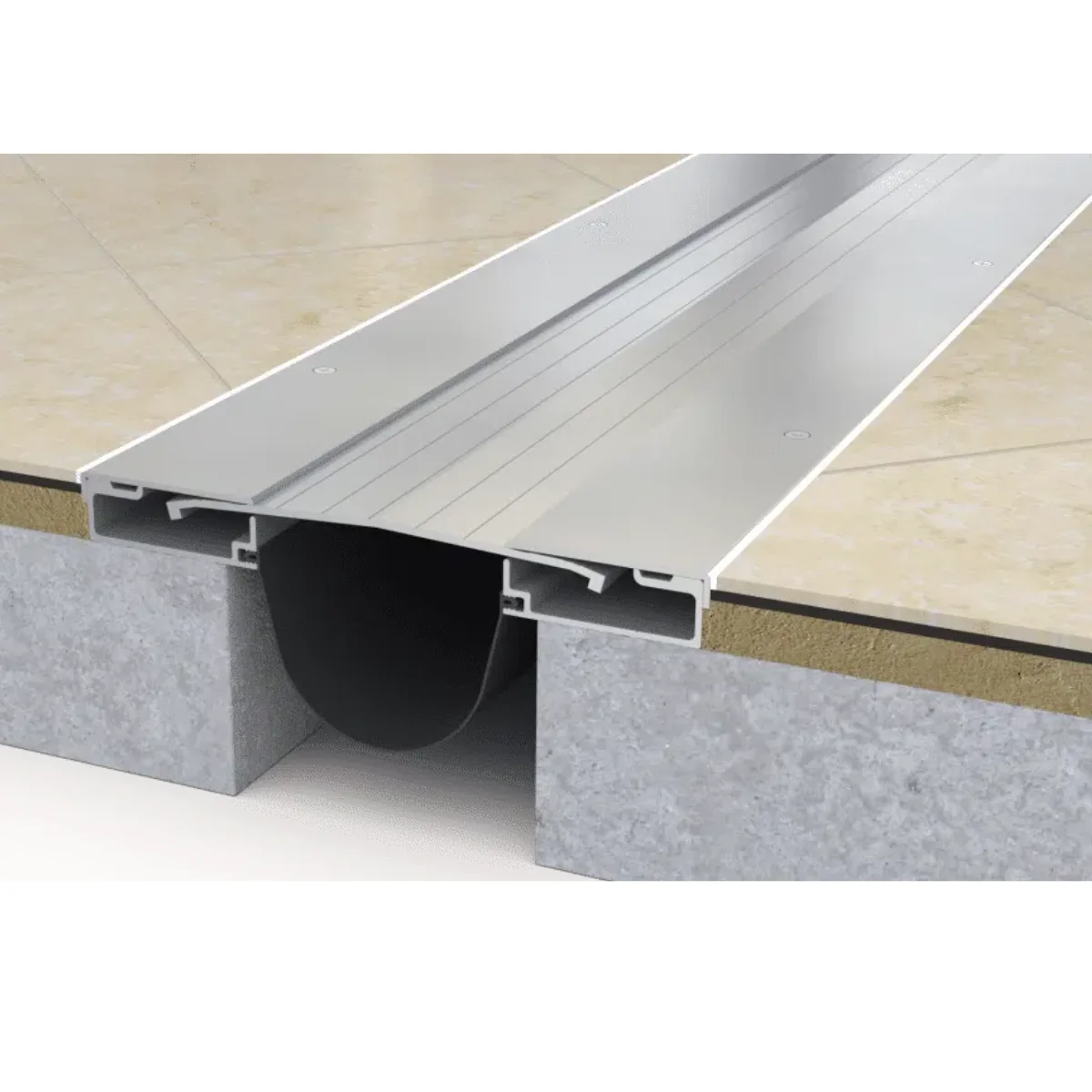

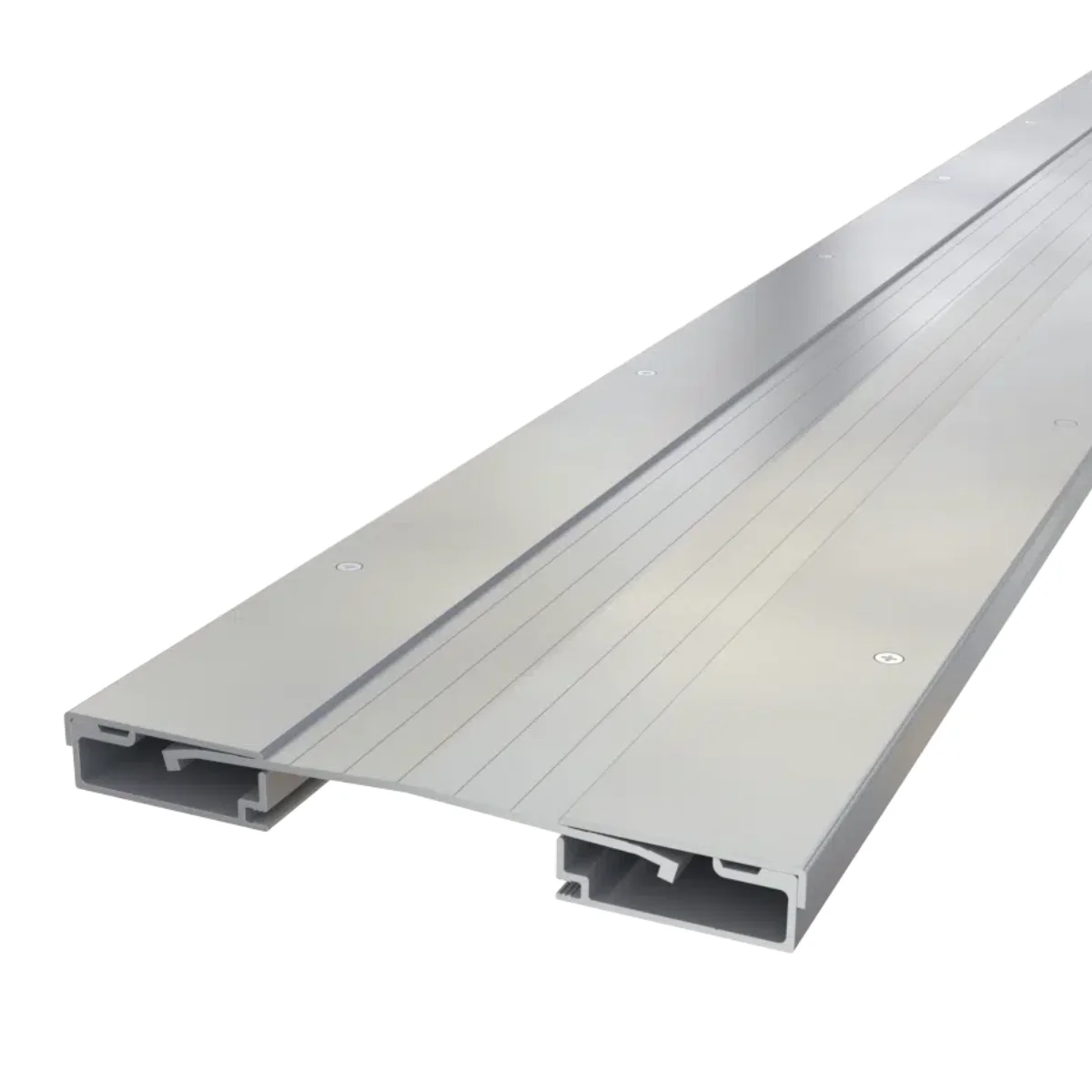

Seismic ground expansion joint allowing large movements. Consisting of aluminium bases and stainless steel uppers, it absorbs expansion, contraction, vertical and shear movements.
Can be used for any type of finish: expansion joint for concrete, screed, tiles, etc.
Can be used for any type of finish: expansion joint for concrete, screed, tiles, etc.
Description
Shipping & Delivery
Related products
Expansion Joints JHR 5.10
Floor joints with insert
Brass Floor Expansion Joint
MATERIAL: Brass
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Main course only
CHARACTERISTICS:
- Expansion joint with flexible insert
- Brass gasket for a luxury finish
Brass floor expansion joint composed of an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, marble, etc. For indoor or outdoor floor joints up to 30 mm. Suitable for pedestrian and non-intensive light vehicle traffic.
Expansion Joints JHR 5.08
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Reinforced Floor Expansion Joint
- Special for large widths
- For opening joints up to 125 mm
Wide-width floor expansion joint for outdoor and indoor use made of aluminium angles and 2 interchangeable flexible nitrile inserts for any type of finish: expansion joint for slabs, screeds, tiles, etc.
Expansion Joints JDH 5.02
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Standard Floor Expansion Joint
- Smooth Insert Option
- For opening joints up to 60 mm
Standard floor expansion joint for exterior and interior made of pre-drilled aluminum angles and an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, etc. Suitable for light traffic, it will also be suitable for the passage of light trolleys with tyres and non-intensive traffic of light vehicles.
Expansion Joints JDV 4.10
Special Vertical Expansion Joint Large Seismic Movements
Seismic Vertical Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special expansion joint for large seismic movements
- Vertical installation: façade, wall and ceiling
- For opening joints from 50 to 200 mm
All-metal vertical expansion joint for train stations, airports, shopping malls...
These models consist of springs that allow large seismic movements.
Expansion Joints JDV 4.08
Special Vertical Expansion Joint External Insulation
Vertical expansion joint
MATERIAL: PVC
Nitrile
COLOUR: White
MODEL: Flat and Angle
CHARACTERISTICS:
- Vertical expansion joint
- Special insulation from the outside
- For 30 mm opening joints
Specially designed for the treatment of expansion joints in buildings made with external insulation.
It consists of:
- a fibre mesh for perfect adhesion to the plaster and easy positioning,
- a nitrile membrane to ensure the tightness of the system,
- a cladding of UV-resistant PVC closing profiles.
Expansion Joints JDV 4.04
Galvanized Steel Exterior and Interior Wall Expansion Joint
Steel expansion profile with nitrile insert
MATERIAL: Galvanized steel
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- For 30 to 50 mm opening joints
- Laying under plaster
- Recessed vertical expansion joint
Vertical expansion joints in galvanized steel for facades, walls and ceilings composed of two pre-drilled recessed galvanized steel angles and an interchangeable flexible nitrile insert to absorb small multidirectional movements.
Expansion Joints JDV 4.03
Aluminum Seismic Vertical Expansion Joint
All-metal expansion joint
MATERIAL: ALUMINIUM
COLOUR: NATURAL
RAL COLOURS
MODEL: FLAT AND ANGLE
CHARACTERISTICS:
- For opening joints from 50 to 100 mm
- Seismic expansion joint
- Vertical wall and ceiling installation
Anodized aluminum seismic expansion joint for facades, walls and ceilings. Composed of a support fixed on one side only and an aluminium covering profile, this seismic joint cover absorbs expansion, contraction and shear movements.
Expansion Joints JDV 4.02
Vertical expansion joint for facades, walls and ceilings
Seismic expansion joint for vertical application
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- For opening joints from 40 to 200 mm
- Seismic expansion joint
- Vertical installation of façade, wall and ceiling
Seismic vertical expansion joint in anodized aluminum composed of pre-drilled angles and a central part that allows ample movements to be absorbed.
It is ideally suited for application on walls, facades and ceilings. Available in 3 ml length.
