Expansion Joints JHR 6.11
All metal floor joints
Floor Expansion Joint for Glued Tiles
MATERIAL: ALUMINIUM
COLOUR: NATURAL
MODEL: FLAT
CHARACTERISTICS:
- All-metal expansion joint for glued tiles
- Special for low heights
- For opening joints up to 40 mm

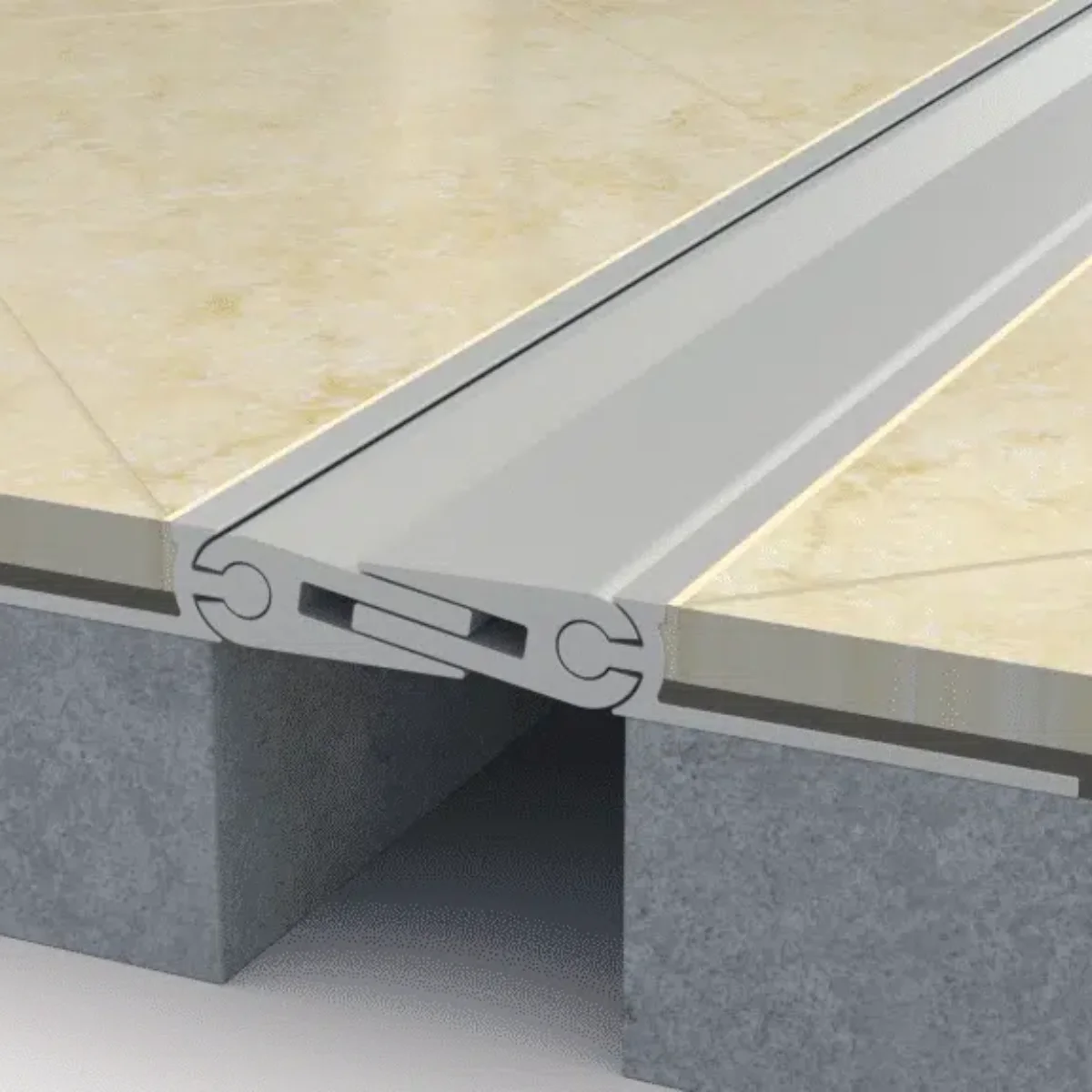

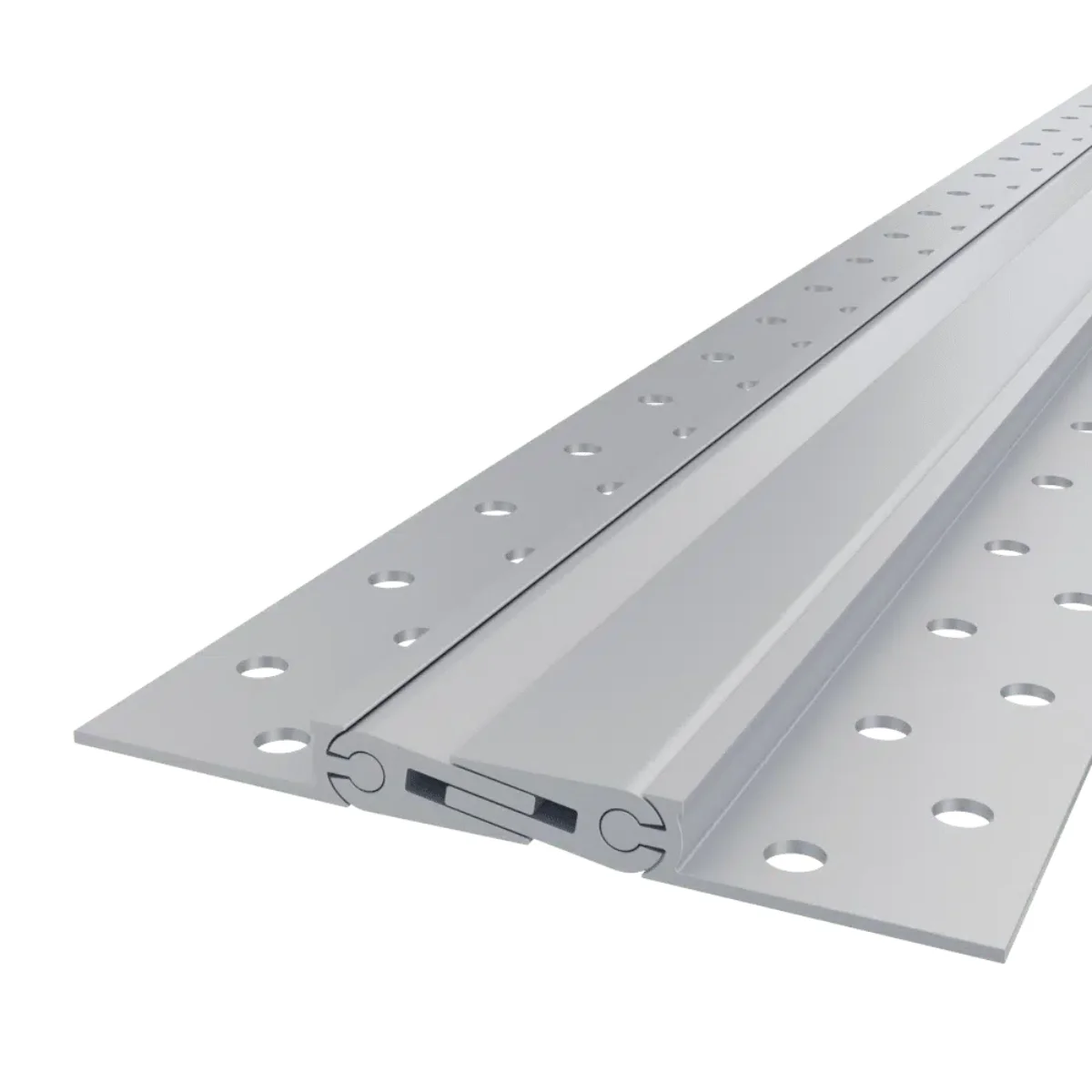

Special recessed floor expansion joint for low heights for glued tiles, stone and ceramics. Consisting of 2 aluminum angles, the JDH 6.11 allows expansion and contraction movements as well as vertical and shear movements. It is suitable for commercial buildings, hospitals, hotels, schools, etc.
Description
Shipping & Delivery
