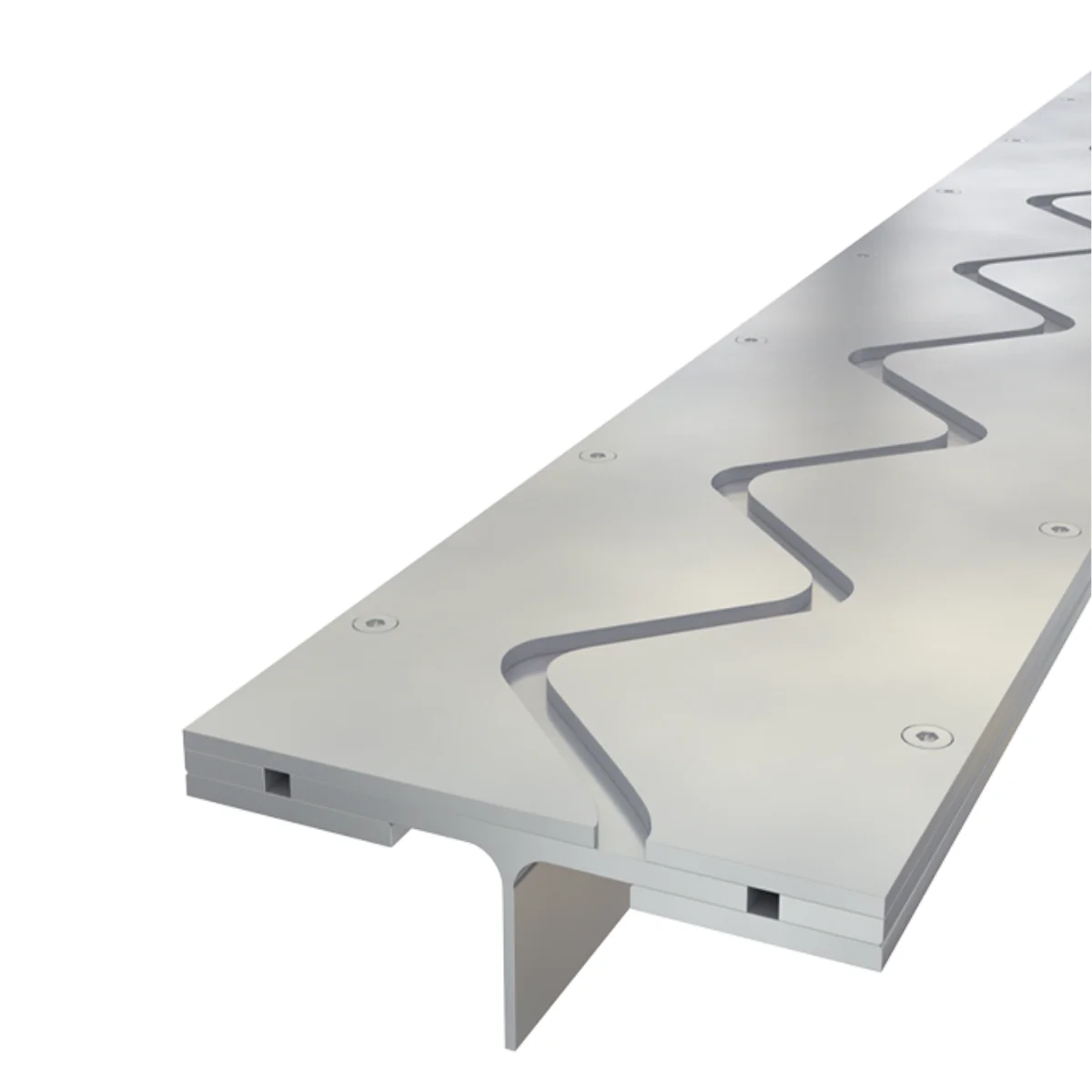

Expansion Joints JHR 6.04
All metal floor joints
Expansion joint made of special steel for very heavy loads and heavy traffic
MATERIAL: Steel
Stainless steel
COLOUR: Natural
MODEL: Main course only
CHARACTERISTICS:
- Special for very heavy loads and heavy duty
- Coverings: concrete, screed, tiles, etc.
- For opening joints up to 250 mm
Expansion joint for industrial buildings, factories and warehouses. Specially designed to support very heavy loads. It is particularly suitable for renovation, mounted on transverse beams. Steel or stainless steel trays available as an option.
