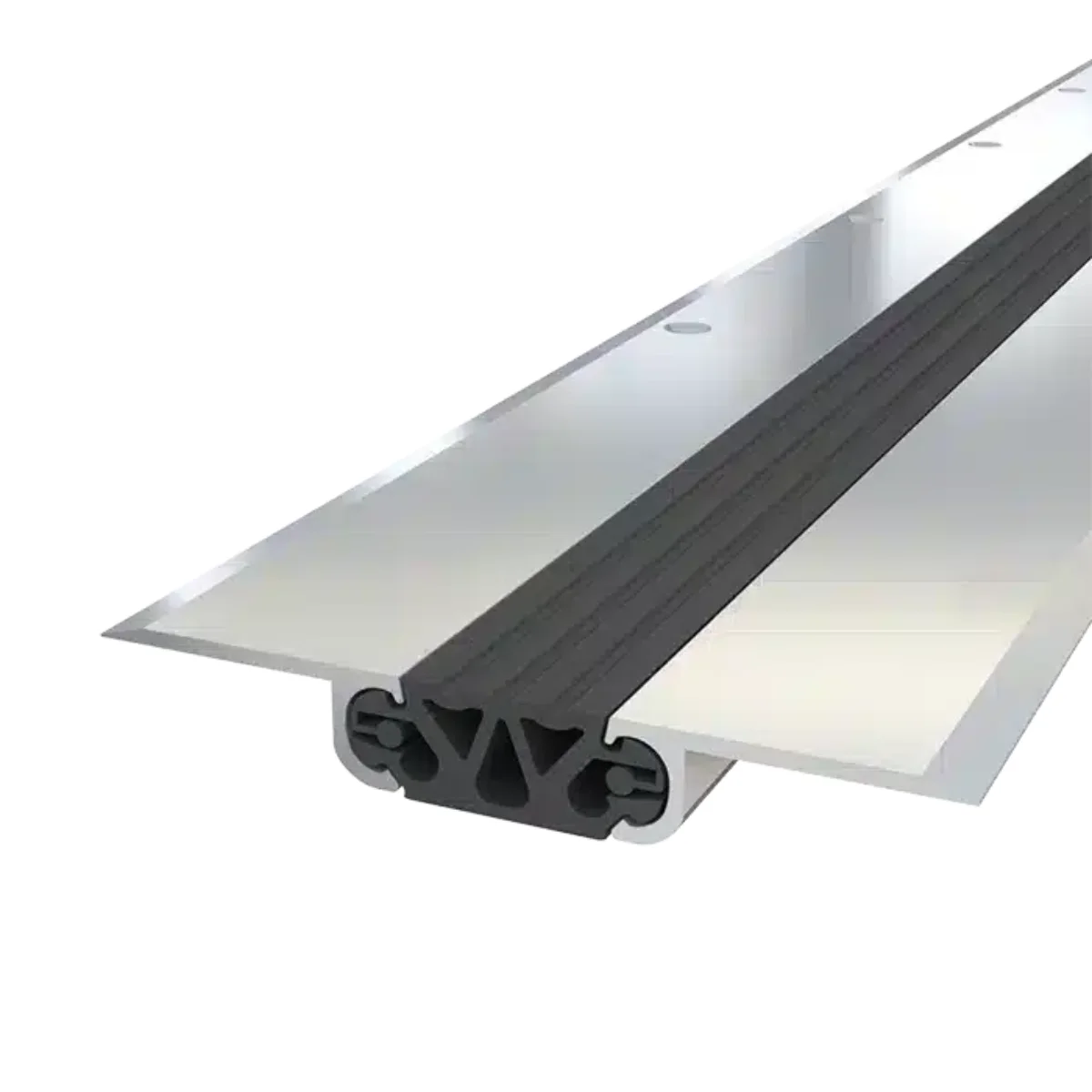

Expansion Joints JHR 5.34
Parking Joints
Floor Expansion Joint with Flexible Insert
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
MODEL: flat and angle
CHARACTERISTICS:
- Floor expansion joint
- For any type of finish: slab, screed, tiles, etc.
- For opening joints from 100 to 150 mm
Floor expansion joint for exterior and interior made of aluminium angles and a flexible insert for any type of finish: slab, screed, tile, etc.
Description
Shipping & Delivery
Related products
Expansion Joints JHR 5.10
Floor joints with insert
Brass Floor Expansion Joint
MATERIAL: Brass
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Main course only
CHARACTERISTICS:
- Expansion joint with flexible insert
- Brass gasket for a luxury finish
Brass floor expansion joint composed of an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, marble, etc. For indoor or outdoor floor joints up to 30 mm. Suitable for pedestrian and non-intensive light vehicle traffic.
Expansion Joints JDH 5.02
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Standard Floor Expansion Joint
- Smooth Insert Option
- For opening joints up to 60 mm
Standard floor expansion joint for exterior and interior made of pre-drilled aluminum angles and an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, etc. Suitable for light traffic, it will also be suitable for the passage of light trolleys with tyres and non-intensive traffic of light vehicles.
Expansion Joints JDH 5.02 with Hoods
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
Brass or stainless steel
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Standard Floor Expansion Joint
- Smooth Insert Option
- For opening joints up to 60 mm
Floor expansion joint for exterior and interior made up of aluminium angles, an interchangeable flexible insert and metal covers in stainless steel, brass or aluminium, for all types of finishes: slab, screed, tile, etc. Suitable for light traffic, it will also be suitable for the passage of light trolleys with tyres and non-intensive traffic of light vehicles.
Expansion Joints JDV 4.06
Vertical expansion joint for walls, facades and ceilings
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
MODEL: Flat and Angle
CHARACTERISTICS:
- For opening joints up to 60 mm
- Vertical installation of façade, wall and ceiling
- Available from stock
The expansion joint for walls, facades and ceilings consists of two raw aluminium angles and a flexible nitrile insert. The side angles are covered with cellular foam that compensates for unevenness in the surfaces.
Expansion Joints JDV 4.04
Galvanized Steel Exterior and Interior Wall Expansion Joint
Steel expansion profile with nitrile insert
MATERIAL: Galvanized steel
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- For 30 to 50 mm opening joints
- Laying under plaster
- Recessed vertical expansion joint
Vertical expansion joints in galvanized steel for facades, walls and ceilings composed of two pre-drilled recessed galvanized steel angles and an interchangeable flexible nitrile insert to absorb small multidirectional movements.
Expansion Joints Flexible Blanking Profile CP
Flexible sealing profiles
MATERIAL: Vulcanized thermoplastic
COLOUR: Black
MODEL: Dish only
CHARACTERISTICS:
- Cost-effective product, quick installation
- Hydrocarbon and UV resistant profiles
- For opening joints between 25 and 100 mm
Flexible vulcanised thermoplastic shutter profiles designed to be recessed into the floor and fixed with a special adhesive. The internal dimples support up to 50% of multidirectional movement, while maintaining enough lift to absorb traffic. Hydrocarbon and UV resistant profiles, which must be installed at least 5 mm below the running surface.
Expansion Joints GASKET COVER CJP
Joint Covers & PSO
MATERIAL: Aluminium
galvanized steel
stainless steel
COLOUR: RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- For new work and renovation
- For opening joints up to 500 mm
- Possibility of tailor-made, contact us
CJP's folded aluminium and stainless steel joint covers are designed to protect and cover the joints of facades, walls, ceilings and floors.
Economical, easy and quick to install, pre-drilled or not, floor or wall joint covers are used in new work and renovation to cover expansion joints up to 500 mm of opening.
Expansion Joints GASKET COVER CJE-PF
Extruded, drilled and milled joint covers
MATERIAL: Aluminium
COLOUR: PAL Shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Economical joint cover, easy and quick installation
- For new work and renovation
- For opening joints up to 250 mm
CJE-PF joint covers are designed to protect and cover floor joints but can also be used on facades, walls and ceilings. Aesthetic, decorative and economical, they can be used indoors or outdoors. Pre-drilled and milled, they are easy to install, and are used in new work and renovation for joints from 10 to 250 mm of opening.
