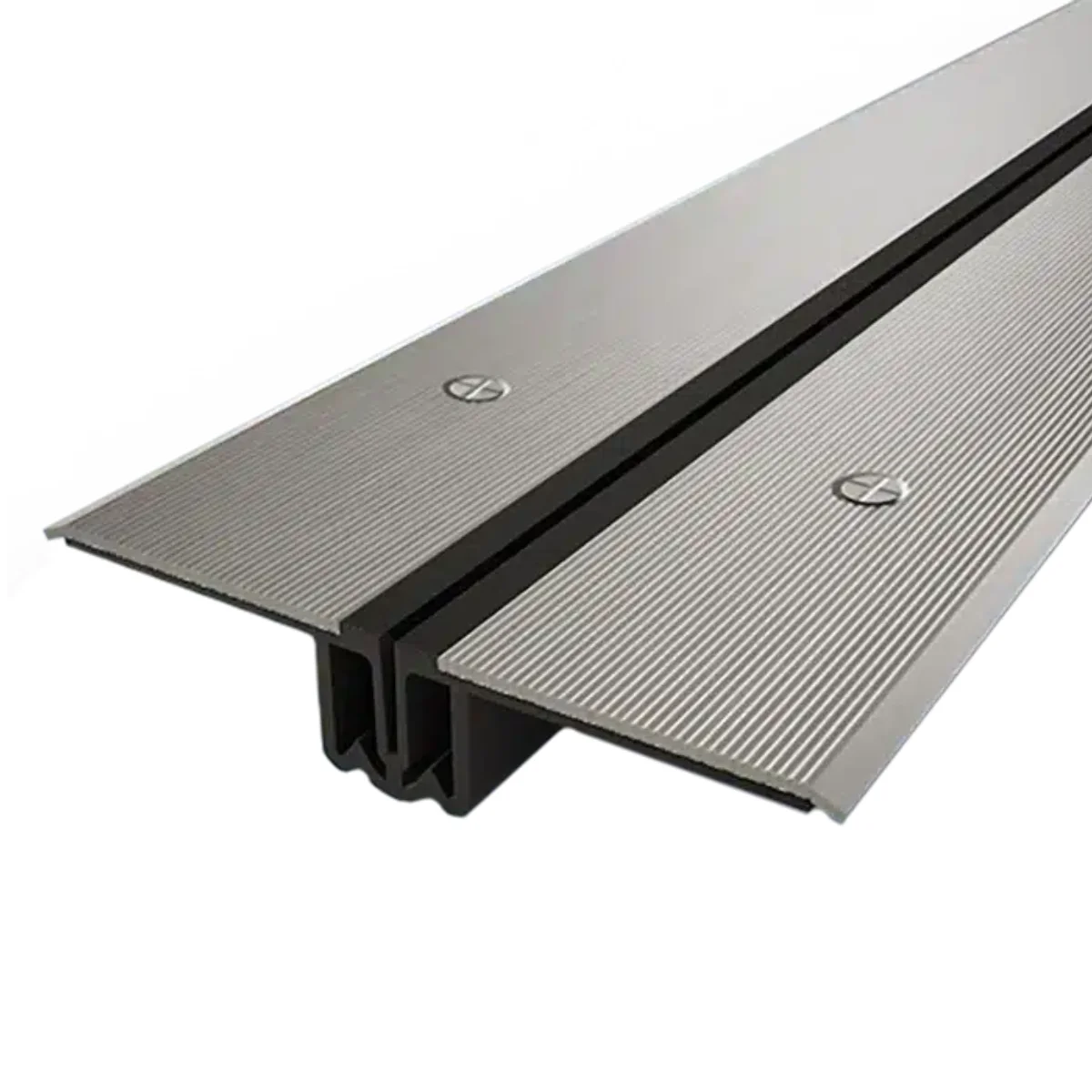

Expansion Joints JHR 5.30
Floor joints with insert
Floor Expansion Joint
MATERIAL: Aluminium
Steel
Stainless steel
Nitrile
COLOUR: Black
Grey
MODEL: Flat and Angle
CHARACTERISTICS:
- Floor expansion joint
- Special indoor parking levels
- For opening joints from 15 to 35 mm
Floor expansion joints for interior levels of car parks, access ramps and all other places with or without low-speed vehicle traffic. Consisting of a flexible nitrile insert to absorb dilation movements. Our JDH 5.30 is held in place by two drilled flanges milled in galvanized steel, ribbed raw aluminum or smooth stainless steel of variable thickness.
Category: Tile Trims & Expansion Joins
Related products
Expansion Joints JHR 5.08
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Reinforced Floor Expansion Joint
- Special for large widths
- For opening joints up to 125 mm
Wide-width floor expansion joint for outdoor and indoor use made of aluminium angles and 2 interchangeable flexible nitrile inserts for any type of finish: expansion joint for slabs, screeds, tiles, etc.
Expansion Joints JHR 5.04
Floor joints with insert
Floor Expansion Joint with Insert
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Reinforced Floor Expansion Joint
- Smooth Insert Option
- For opening joints from 30 to 60 mm
Reinforced floor expansion joint for exterior and interior made of pre-drilled aluminium angles and an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, etc.
Expansion Joints JDV 4.12
Special Large Seismic Motion Vertical Expansion Joint
Expansion joint for false ceilings
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special expansion joint for large seismic movements
- Vertical installation: façade, wall and ceiling
- For opening joints from 50 to 200 mm
Expansion joint for ceilings for opening joints up to 200 mm.
This seismic expansion joint allows for large multidirectional movements.
Expansion Joints JDV 4.10
Special Vertical Expansion Joint Large Seismic Movements
Seismic Vertical Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special expansion joint for large seismic movements
- Vertical installation: façade, wall and ceiling
- For opening joints from 50 to 200 mm
All-metal vertical expansion joint for train stations, airports, shopping malls...
These models consist of springs that allow large seismic movements.
Expansion Joints JDV 4.07
Special Vertical Expansion Joint for Large Multidirectional Movements
Seismic Vertical Expansion Joint
MATERIAL: Aluminium
EPDM
COLOUR: Black
Grey
MODEL: Main course only
CHARACTERISTICS:
- Seismic expansion joint
- Vertical installation of façade, wall and ceiling
- For opening joints up to 600 mm
Vertical expansion joint for facades, walls and ceilings for opening joints up to 600 mm.
Allows you to absorb large multidirectional movements.
Expansion Joints JDV 4.03
Aluminum Seismic Vertical Expansion Joint
All-metal expansion joint
MATERIAL: ALUMINIUM
COLOUR: NATURAL
RAL COLOURS
MODEL: FLAT AND ANGLE
CHARACTERISTICS:
- For opening joints from 50 to 100 mm
- Seismic expansion joint
- Vertical wall and ceiling installation
Anodized aluminum seismic expansion joint for facades, walls and ceilings. Composed of a support fixed on one side only and an aluminium covering profile, this seismic joint cover absorbs expansion, contraction and shear movements.
Expansion Joints Flexible Blanking Profile PSR
Flexible sealing profiles
MATERIAL: Nitrile
PVC
COLOUR: Black
Grey
RAL shades
MODEL: Main course only
CHARACTERISTICS:
- Cost-effective product, quick installation
- For non-circulatable horizontal and vertical joints
- For opening joints between 10 and 90 mm
Recessed flexible blanking profiles are ideal for the quick and economical construction of vertical joints, exterior or interior, or ceiling joints.
PSRs have a "cap" shaped upper part that provides coverage and hides any irregularities that the joint may have.
Expansion Joints PSO
Flexible sealing profiles
MATERIAL: Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Cost-effective product, quick installation
- For non-circulatable horizontal and vertical joints
- For opening joints between 10 and 120 mm
Recessed flexible blanking profiles are ideal for the quick and economical construction of vertical joints, exterior or interior, or ceiling joints.
The PSO flexible profiles are installed, which allows for a quality finish. They can also be glued.
