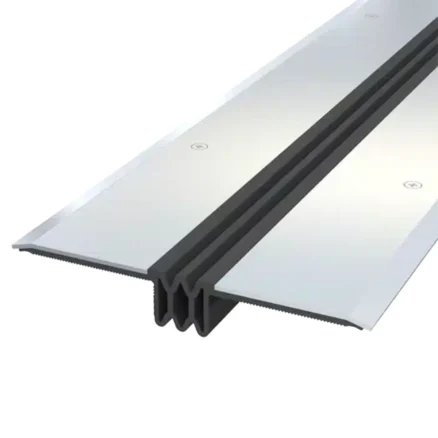

Expansion Joints JHR 5.305

Parking Joints

Floor expansion joint for car parks

MATERIAL: ALUMINIUM STEEL Stainless steel NITRILE
COLOUR: BLACK GREY
MODEL: FLAT AND ANGLE
CHARACTERISTICS:
  • Floor expansion joint
  • Special indoor parking levels
  • For 20 to 35 mm opening joints
Floor expansion joints for interior levels of car parks, access ramps and all other places with or without low-speed vehicle traffic. Consisting of a flexible nitrile insert to absorb dilation movements. Our JDH 5.305 is held in place by two drilled flanges milled in ribbed raw aluminium or galvanised steel or smooth stainless steel of varying dimensions. Special installation on finished floor.

Expansion Joints JHR 5.30

Floor joints with insert

Floor Expansion Joint

MATERIAL: Aluminium Steel Stainless steel Nitrile
COLOUR: Black Grey
MODEL: Flat and Angle
CHARACTERISTICS:
  • Floor expansion joint
  • Special indoor parking levels
  • For opening joints from 15 to 35 mm
Floor expansion joints for interior levels of car parks, access ramps and all other places with or without low-speed vehicle traffic. Consisting of a flexible nitrile insert to absorb dilation movements. Our JDH 5.30 is held in place by two drilled flanges milled in galvanized steel, ribbed raw aluminum or smooth stainless steel of variable thickness.

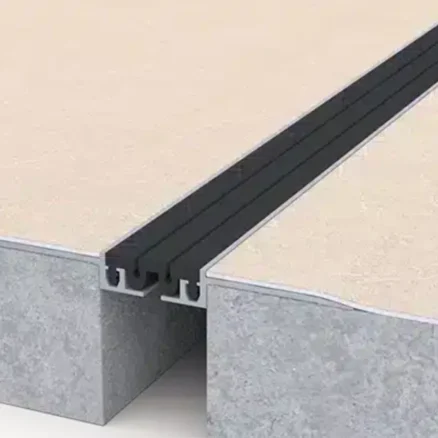

Expansion Joints JHR 5.26 R+3

Floor joints with insert

Special Flexible Floor or Resin Expansion Joint

MATERIAL: Aluminium Nitrile
COLOUR: Black Grey RAL shades
MODEL: Flat and Angle
Built-in profile for interior or exterior floor expansion joints, specially adapted for flexible or resin floor finishes. Expansion joint consisting of reinforced angles drilled with milled aluminum and a flexible heat-weldable insert.

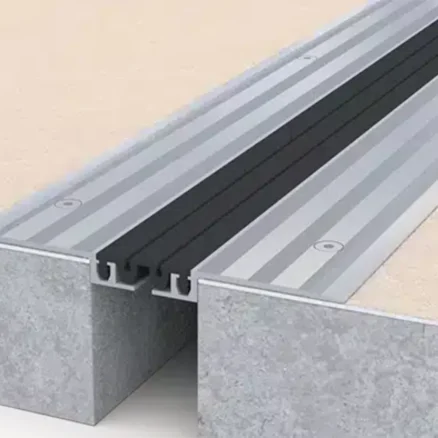

Expansion Joints JDH 5.26

Floor joints with insert

Floor expansion joint for installation on finished floor

MATERIAL: Aluminium Nitrile
COLOUR: Black Grey RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
  • Floor expansion joint for installation on finished floor
  • For opening joints from 20 to 60 mm
Built-in profile for interior or exterior floor expansion joints, specially adapted for installation on finished floors. Expansion joint consisting of reinforced angles drilled with milled aluminum and a flexible heat-weldable insert.

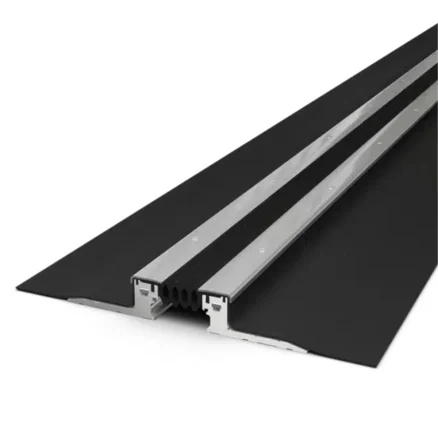

Expansion Joints JHR 5.25

Floor joints with insert

Waterproof Floor Expansion Joint for Parking

MATERIAL: Aluminium Stainless steel Nitrile
COLOUR: Black
MODEL: Flat and Angle
CHARACTERISTICS:
  • 100% waterproof ground expansion joint for parking on roof terraces
  • Stainless steel or aluminum protection
  • Withstands heavy vehicle traffic, chemical aggression and hydrocarbons
Waterproof floor expansion joint for special car parks with stainless steel or aluminium protection. Highly resistant to heavy vehicle traffic, chemical attacks, hydrocarbons, etc. Perfectly suited for car parks, access ramps, esplanades, and any other places with or without low speed light vehicle traffic requiring a watertight expansion joint. Weldable interchangeable insert. Available with short or long wings.

Expansion Joints JHR 5.20

Floor joints with insert

Aluminum Seismic Ground Expansion Joint with Inserts

MATERIAL: Aluminium Nitrile
COLOUR: Black Grey
MODEL: Main course only
CHARACTERISTICS:
  • Special wide-width floor expansion joint
  • Insert option: smooth, + 3 mm
  • For opening joints from 100 to 400 mm
Extra-large seismic ground expansion joint consisting of angles and an aluminum center plate connected by two black flexible inserts to absorb expansion movements. Can be used for expansion joints up to 400 mm and for all types of finishes: slab, screed, tiles, etc.

Expansion Joints JHR 5.18

Floor joints with insert

Special Wide-Width Floor Expansion Joint

MATERIAL: Aluminium Nitrile
COLOUR: Black Grey RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
  • Special wide-width floor expansion joint
  • Smooth Insert Option
  • For opening joints from 100 to 500 mm
Extra-wide floor expansion joint consisting of 2 identical profiles, usually from the JDH 5.02 or JDH 5.04 series (see Technical Sheets), connected to each other by an aluminium supporting structure. The black or grey soft inserts are available in different widths (50 and 65 mm) to absorb more or less significant three-dimensional expansion movements.

Expansion Joints JHR 5.12

Floor joints with insert

Heavy Duty Aluminum Floor Expansion Joint

MATERIAL: Aluminium Nitrile
COLOUR: Black Grey RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
  • Special wide-width floor expansion joint
  • Special for heavy car traffic
  • For opening joints from 80 to 300 mm
Floor expansion joint made of aluminium angles and a flexible black or grey insert to absorb expansion movements. Can be used for concrete, screed, tile expansion joints and up to 100 mm. Suitable for semi-heavy traffic, it will be suitable for the passage of tired-type forklifts and heavy traffic of light vehicles.

Expansion Joints JHR 5.10

Floor joints with insert

Brass Floor Expansion Joint

MATERIAL: Brass Nitrile
COLOUR: Black Grey RAL shades
MODEL: Main course only
CHARACTERISTICS:
  • Expansion joint with flexible insert
  • Brass gasket for a luxury finish
Brass floor expansion joint composed of an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, marble, etc. For indoor or outdoor floor joints up to 30 mm. Suitable for pedestrian and non-intensive light vehicle traffic.

Expansion Joints JHR 5.08

Floor joints with insert

Aluminum Floor Expansion Joint

MATERIAL: Aluminium Nitrile
COLOUR: Black Grey RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
  • Reinforced Floor Expansion Joint
  • Special for large widths
  • For opening joints up to 125 mm
Wide-width floor expansion joint for outdoor and indoor use made of aluminium angles and 2 interchangeable flexible nitrile inserts for any type of finish: expansion joint for slabs, screeds, tiles, etc.

Expansion Joints JDH 5.06

Floor joints with insert

Special Wide-Width Floor Expansion Joint

MATERIAL: Aluminium Nitrile
COLOUR: Black Grey RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
  • Special wide-width floor expansion joint
  • For opening joints from 100 to 200 mm
Floor expansion joint made of aluminium angles and a smooth interchangeable central flexible insert, black or grey (other colours on request) to absorb expansion movements. Can be used for any type of finish: expansion joint for concrete, screed, tiles, etc. For indoor or outdoor floor joints.

Expansion Joints JHR 5.04

Floor joints with insert

Floor Expansion Joint with Insert

MATERIAL: Aluminium Nitrile
COLOUR: Black Grey RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
  • Reinforced Floor Expansion Joint
  • Smooth Insert Option
  • For opening joints from 30 to 60 mm
Reinforced floor expansion joint for exterior and interior made of pre-drilled aluminium angles and an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, etc.
