Expansion Joints JHR 6:16
Seismic expansion joints

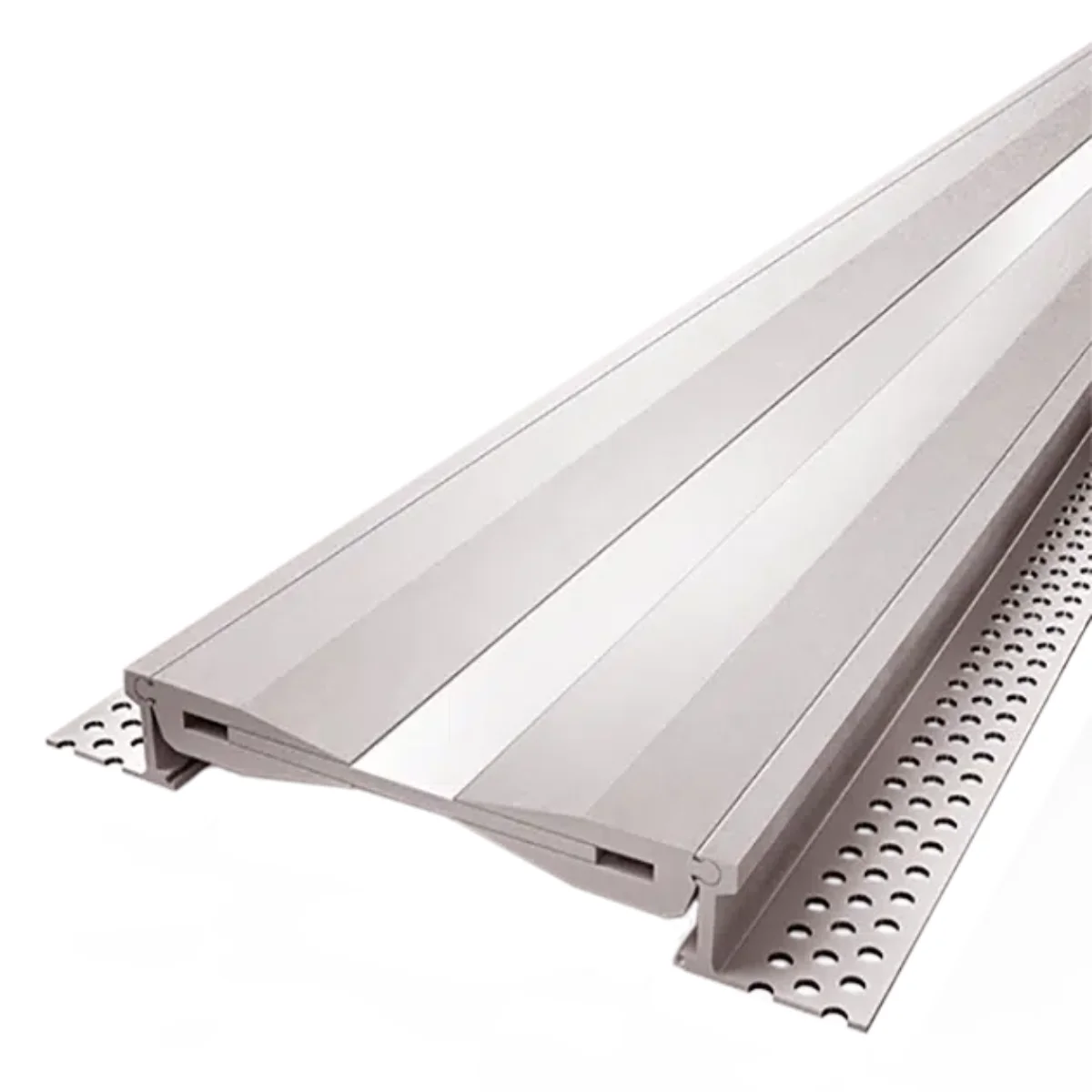

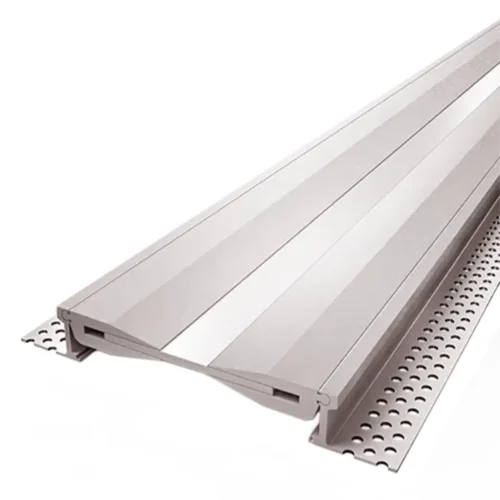

Special Wide-Width Floor Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Seismic expansion joint
- Special for large widths
- For opening joints up to 250 mm
Seismic floor expansion joint for exterior and interior consisting of two angles and a thick central piece made of aluminum allowing significant expansion and contraction movements, as well as vertical and shear movements. Can be used for any type of finish: expansion joint for concrete, screed, tiles, etc. For indoor or outdoor floor joints up to 250 mm. Suitable for heavy light vehicle traffic.
