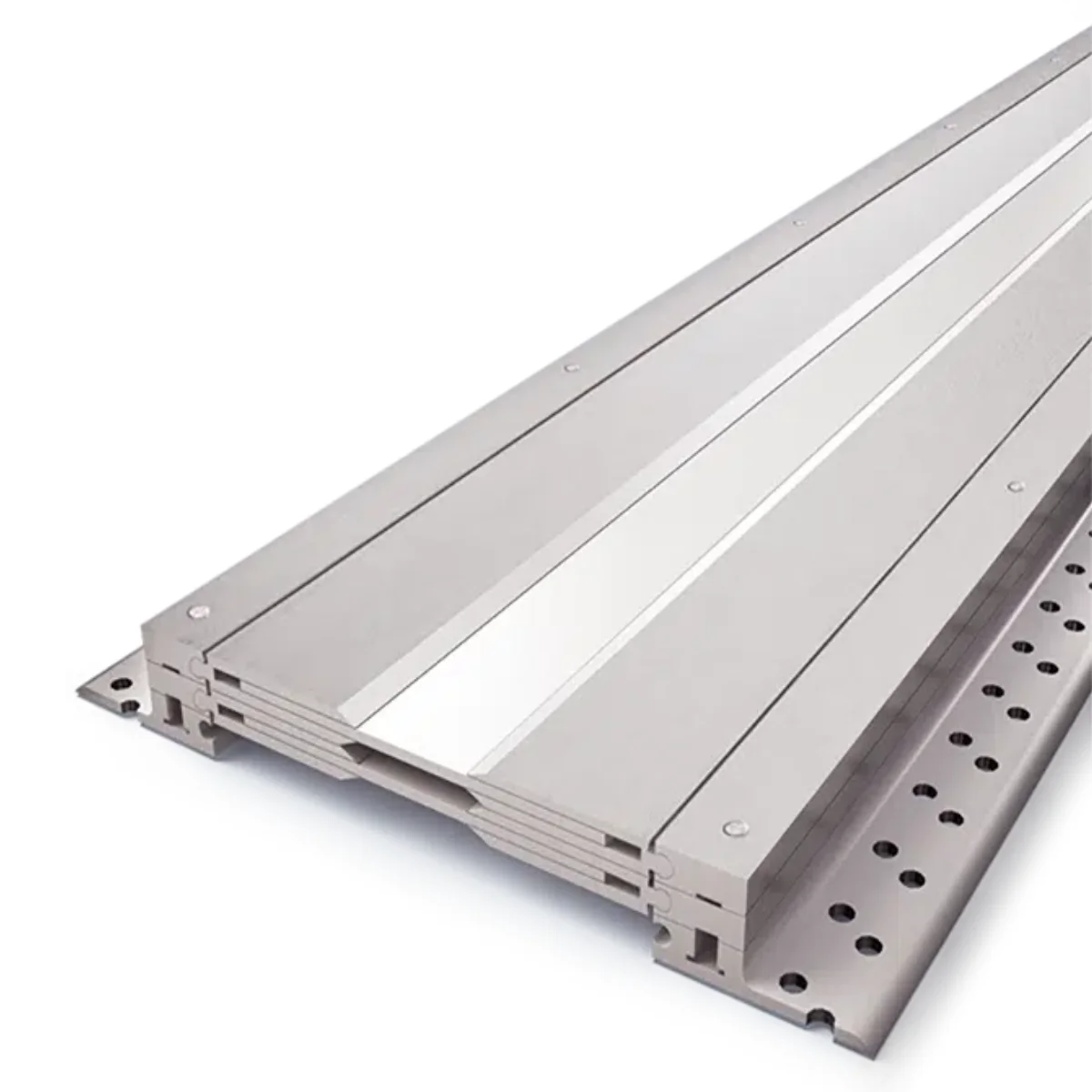

Expansion Joints JHR 6.20
All metal floor joints
Special Wide-Width Floor Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- All-metal floor expansion joint
- Special for large widths
- For opening joints between 135 and 340 mm
All aluminum seismic floor expansion joint for exterior and interior. The aluminium inner parts slide between them, thus absorbing three-dimensional movements: horizontal, vertical and shear. Interchangeable aluminium tops with the option of a nitrile levelling strip.
Can be used for any type of finish: expansion joint for concrete, screed, tiles, etc.
Can be used for any type of finish: expansion joint for concrete, screed, tiles, etc.
