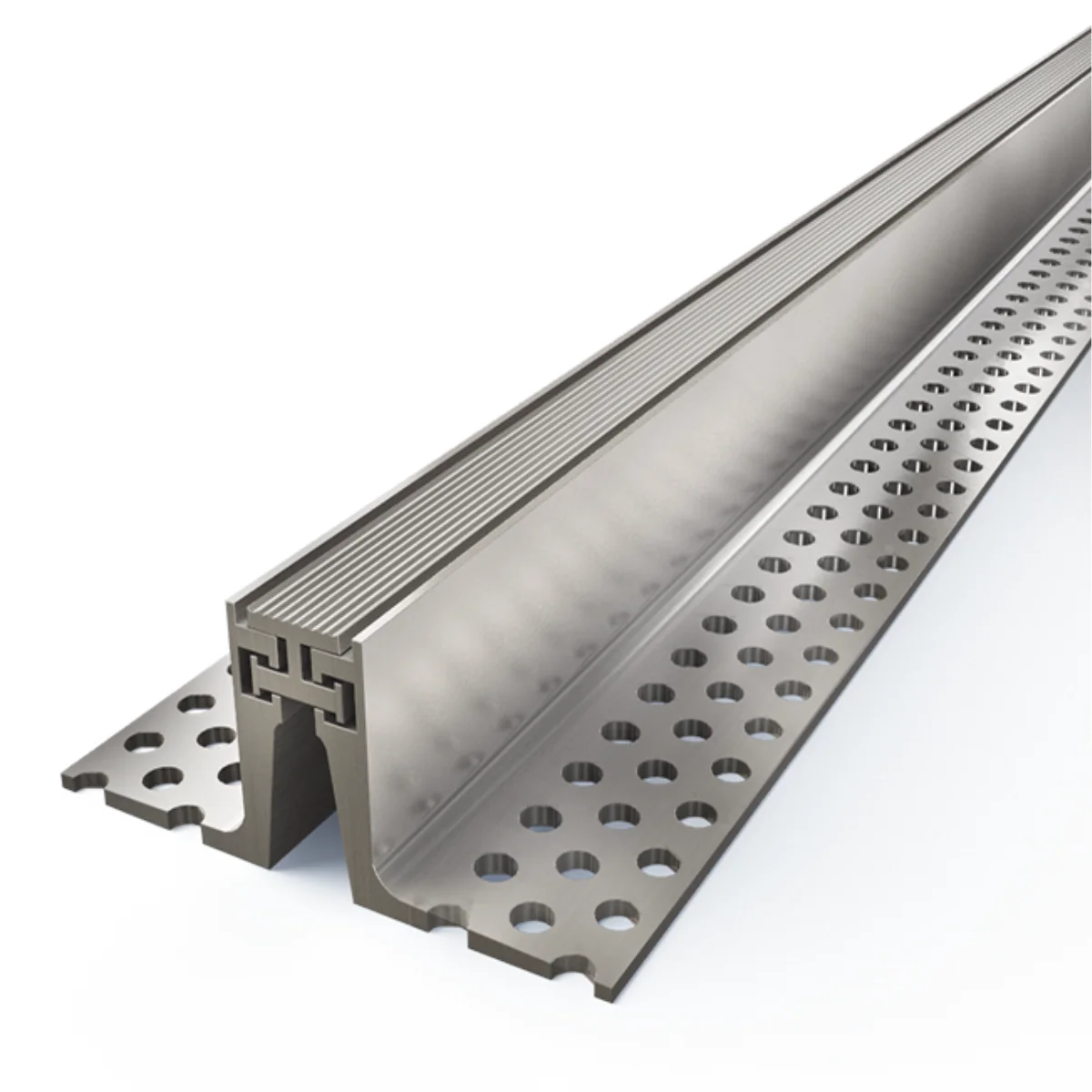

Expansion Joints JHR 6.06
All metal floor joints
Aluminium profile for heavy loads and heavy duty
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat and Angle
CHARACTERISTICS:
- Special for heavy loads and heavy duty
- Coverings: concrete, screed, tiles, etc.
- For 20 mm opening joints
Floor expansion joint for exterior and interior consisting of two angles and a central part in aluminium allowing expansion and contraction movements. Can be used for any type of finish: concrete, screed, tiles, etc. For indoor or outdoor floor joints up to 20 mm. Suitable for heavy traffic of tyred forklifts, trucks, pallet trucks and heavy light vehicle traffic.
