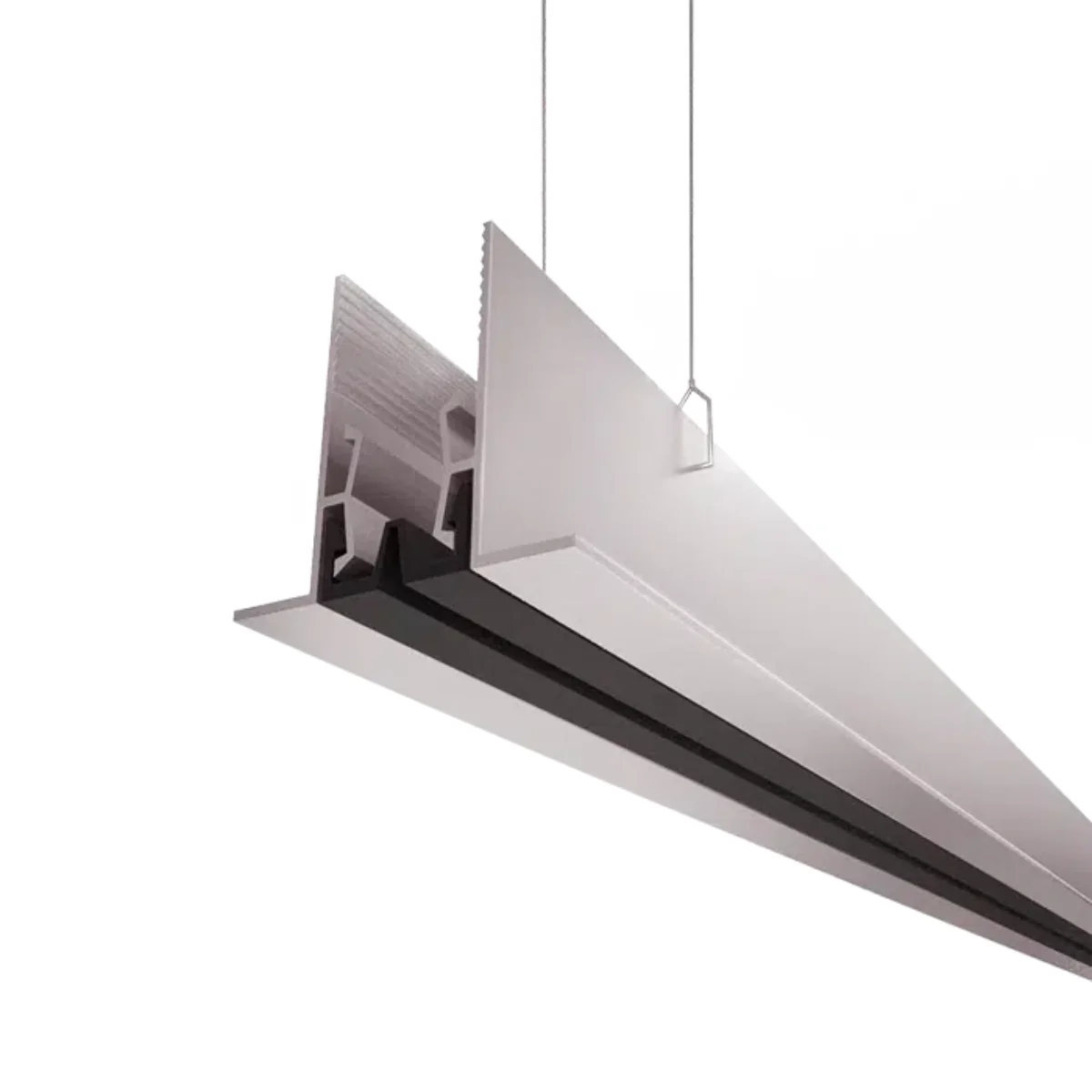

Expansion Joints JDV 4.14
Seismic expansion joints
Special Seismic Vertical Expansion Joint for False Ceilings
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
MODEL: Flat and Angle
CHARACTERISTICS:
- Seismic expansion joint
- Special suspended ceilings
- For opening joints from 30 to 100 mm
Expansion joint for “false ceiling” composed of aluminium angles, an interchangeable central insert to absorb large multidirectional movements.
Specially adapted for suspended ceilings.
For suspended ceiling joints or “false ceilings” up to 350 mm opening.
Specially adapted for suspended ceilings.
For suspended ceiling joints or “false ceilings” up to 350 mm opening.
Description
Shipping & Delivery
Related products
Expansion Joints JHR 5.12
Floor joints with insert
Heavy Duty Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special wide-width floor expansion joint
- Special for heavy car traffic
- For opening joints from 80 to 300 mm
Floor expansion joint made of aluminium angles and a flexible black or grey insert to absorb expansion movements. Can be used for concrete, screed, tile expansion joints and up to 100 mm. Suitable for semi-heavy traffic, it will be suitable for the passage of tired-type forklifts and heavy traffic of light vehicles.
Expansion Joints JHR 5.10
Floor joints with insert
Brass Floor Expansion Joint
MATERIAL: Brass
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Main course only
CHARACTERISTICS:
- Expansion joint with flexible insert
- Brass gasket for a luxury finish
Brass floor expansion joint composed of an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, marble, etc. For indoor or outdoor floor joints up to 30 mm. Suitable for pedestrian and non-intensive light vehicle traffic.
Expansion Joints JDH 5.02
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Standard Floor Expansion Joint
- Smooth Insert Option
- For opening joints up to 60 mm
Standard floor expansion joint for exterior and interior made of pre-drilled aluminum angles and an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, etc. Suitable for light traffic, it will also be suitable for the passage of light trolleys with tyres and non-intensive traffic of light vehicles.
Expansion Joints JDV 4.10
Special Vertical Expansion Joint Large Seismic Movements
Seismic Vertical Expansion Joint
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special expansion joint for large seismic movements
- Vertical installation: façade, wall and ceiling
- For opening joints from 50 to 200 mm
All-metal vertical expansion joint for train stations, airports, shopping malls...
These models consist of springs that allow large seismic movements.
Expansion Joints JDV 4.04
Galvanized Steel Exterior and Interior Wall Expansion Joint
Steel expansion profile with nitrile insert
MATERIAL: Galvanized steel
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- For 30 to 50 mm opening joints
- Laying under plaster
- Recessed vertical expansion joint
Vertical expansion joints in galvanized steel for facades, walls and ceilings composed of two pre-drilled recessed galvanized steel angles and an interchangeable flexible nitrile insert to absorb small multidirectional movements.
Expansion Joints JDV 4.03
Aluminum Seismic Vertical Expansion Joint
All-metal expansion joint
MATERIAL: ALUMINIUM
COLOUR: NATURAL
RAL COLOURS
MODEL: FLAT AND ANGLE
CHARACTERISTICS:
- For opening joints from 50 to 100 mm
- Seismic expansion joint
- Vertical wall and ceiling installation
Anodized aluminum seismic expansion joint for facades, walls and ceilings. Composed of a support fixed on one side only and an aluminium covering profile, this seismic joint cover absorbs expansion, contraction and shear movements.
Expansion Joints GASKET COVER CJE-PF
Extruded, drilled and milled joint covers
MATERIAL: Aluminium
COLOUR: PAL Shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Economical joint cover, easy and quick installation
- For new work and renovation
- For opening joints up to 250 mm
CJE-PF joint covers are designed to protect and cover floor joints but can also be used on facades, walls and ceilings. Aesthetic, decorative and economical, they can be used indoors or outdoors. Pre-drilled and milled, they are easy to install, and are used in new work and renovation for joints from 10 to 250 mm of opening.
Expansion Joints GASKET COVER CJ PVC
PVC joint covers
MATERIAL: PVC
COLOUR: White
Beige
Grey
MODEL: Flat and Angle
CHARACTERISTICS:
- Aesthetic, decorative and economical
- Easy and quick to install, without drilling or gluing
- For opening joints from 10 to 120 mm
PVC clip-on joint covers are aesthetic, decorative and economical.
Easy and quick to install, without drilling or gluing, they have different models of clips(S, SLL, XL or XXL) suitable for all joint openings from 10 to 120 mm.
