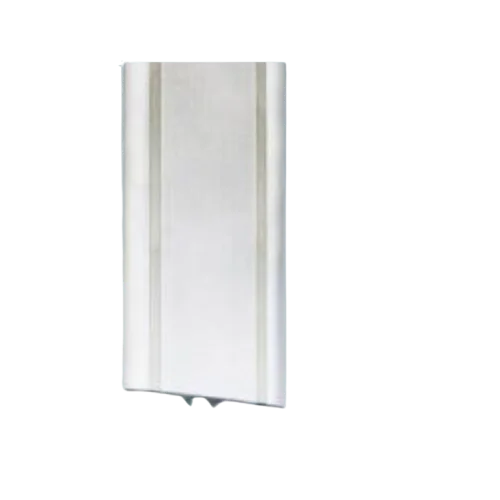

ALUMINIUM COVER JOINT WITH GROOVES
ALUMINIUM COVER JOINT WITH GROOVES FOR EXPANSION JOINT COVERS
THIS COVER JOINT COMES WITH GROOVES ON THE SIDES AND HIGH-QUALITY ANODISATION TO ENHANCE THE APPEARANCE.
FIXED WITH A CLOSED HEAD CLIP, WITH LEAST BUMP ON THE SURFACE.
Product Specification
ALUMINIUM COVER JOINT WITH GROOVES FOR EXPANSION JOINT COVERS
SIZES: 50mm, 90mm
Description
Shipping & Delivery
Related products
Expansion Joints JHR 5.08
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Reinforced Floor Expansion Joint
- Special for large widths
- For opening joints up to 125 mm
Wide-width floor expansion joint for outdoor and indoor use made of aluminium angles and 2 interchangeable flexible nitrile inserts for any type of finish: expansion joint for slabs, screeds, tiles, etc.
Expansion Joints JDH 5.02
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Standard Floor Expansion Joint
- Smooth Insert Option
- For opening joints up to 60 mm
Standard floor expansion joint for exterior and interior made of pre-drilled aluminum angles and an interchangeable central flexible insert to absorb expansion movements. Can be used for any type of finish: concrete, screed, tiles, etc. Suitable for light traffic, it will also be suitable for the passage of light trolleys with tyres and non-intensive traffic of light vehicles.
Expansion Joints JDH 5.02 with Hoods
Floor joints with insert
Aluminum Floor Expansion Joint
MATERIAL: Aluminium
Nitrile
Brass or stainless steel
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Standard Floor Expansion Joint
- Smooth Insert Option
- For opening joints up to 60 mm
Floor expansion joint for exterior and interior made up of aluminium angles, an interchangeable flexible insert and metal covers in stainless steel, brass or aluminium, for all types of finishes: slab, screed, tile, etc. Suitable for light traffic, it will also be suitable for the passage of light trolleys with tyres and non-intensive traffic of light vehicles.
Expansion Joints JDV 4.12
Special Large Seismic Motion Vertical Expansion Joint
Expansion joint for false ceilings
MATERIAL: Aluminium
COLOUR: Natural
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Special expansion joint for large seismic movements
- Vertical installation: façade, wall and ceiling
- For opening joints from 50 to 200 mm
Expansion joint for ceilings for opening joints up to 200 mm.
This seismic expansion joint allows for large multidirectional movements.
Expansion Joints JDV 4.08
Special Vertical Expansion Joint External Insulation
Vertical expansion joint
MATERIAL: PVC
Nitrile
COLOUR: White
MODEL: Flat and Angle
CHARACTERISTICS:
- Vertical expansion joint
- Special insulation from the outside
- For 30 mm opening joints
Specially designed for the treatment of expansion joints in buildings made with external insulation.
It consists of:
- a fibre mesh for perfect adhesion to the plaster and easy positioning,
- a nitrile membrane to ensure the tightness of the system,
- a cladding of UV-resistant PVC closing profiles.
Expansion Joints JDV 4.04
Galvanized Steel Exterior and Interior Wall Expansion Joint
Steel expansion profile with nitrile insert
MATERIAL: Galvanized steel
Nitrile
COLOUR: Black
Grey
RAL shades
MODEL: Flat and Angle
CHARACTERISTICS:
- For 30 to 50 mm opening joints
- Laying under plaster
- Recessed vertical expansion joint
Vertical expansion joints in galvanized steel for facades, walls and ceilings composed of two pre-drilled recessed galvanized steel angles and an interchangeable flexible nitrile insert to absorb small multidirectional movements.
Expansion Joints GASKET COVER CJV
Fastening joint cover
MATERIAL: Aluminium
COLOUR: Natural
MODEL: Flat
ORIENTATION: vertical
CHARACTERISTICS:
- For openings up to 120 mm
- Made of raw aluminium
- Aesthetic and economical joint cover
This drilled and bent profile is the most economical solution for closing expansion joints. Available from stock, this raw aluminum joint cover can be delivered quickly to your construction site.
Expansion Joints GASKET COVER CJE-PF
Extruded, drilled and milled joint covers
MATERIAL: Aluminium
COLOUR: PAL Shades
MODEL: Flat and Angle
CHARACTERISTICS:
- Economical joint cover, easy and quick installation
- For new work and renovation
- For opening joints up to 250 mm
CJE-PF joint covers are designed to protect and cover floor joints but can also be used on facades, walls and ceilings. Aesthetic, decorative and economical, they can be used indoors or outdoors. Pre-drilled and milled, they are easy to install, and are used in new work and renovation for joints from 10 to 250 mm of opening.
